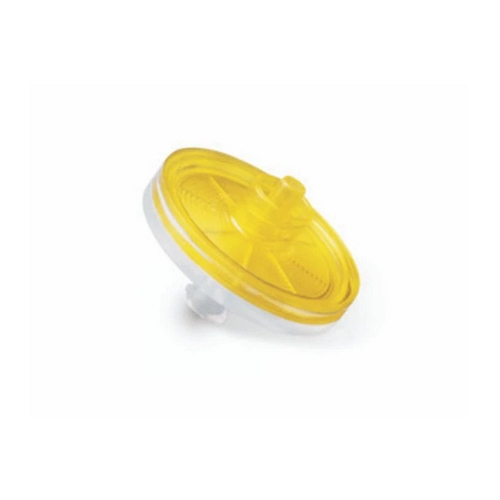

MINISART FILTER 0.45 UM, 50/PKG
Minisart® NML with surfactant-free cellulose acetate (SFCA) is the best choice for all aqueous solutions and oils with a pH of 4 - 8. Type 16555 with a pore size of 0.45 µm can be used for clarification and has a male luer lock outlet. Version K is individually packed and sterilized by ethylene oxide (EO).
Individually packed and sterile Minisart® NML syringe filters are optimal for immediate usage whenever sterile filtration or clarification and cell removal under sterile conditions is needed. The SFCA membrane is the best option for leachable free filtrations and is available in many different pore sizes. The very low non-specific binding characteristics of this membrane makes it a perfect choice for biomolecule solutions. The housing is made of the acrylic resin MBS (Methacrylate butadiene styrene) which has a limited compatibility with alcohols but is free of phthalates and passes the plastic class VI test. Housing and membrane are tightly connected which allows bidirectional use.
- Sterile and ready-to-use
- SFCA in many pore sizes
- Very low non-specific binding
- PVC-free
- Bidirectional use possible
| Product properties | |
| Colour | Yellow |
| Filtration area | 6.2 cm² |
| Diameter | 28 mm |
| Flow rate | 180 mL/min with water at 1 bar (14.5 psi) |
| Pore size | 0.45 µm |
| Primary Product Type | Filtration Devices |
| Brand | Minisart® |
| Wettability | Hydrophilic |
| High Flow | No |
| Packaging | Single blister packed |
| Membrane material | Surfactant-free Cellulose Acetate (SFCA) |
| Connector Outlet | Male Luer Lock |
| Connector Inlet | Female Luer Lock |
| Sterility | Ethylene Oxide |
| Technical attributes | |
| Maximum Pressure | 4.5 bar |
| Operating Pressure | 4.5 bar (65 psi) |
| Hold-up volume | 100 – 150 µL before bubble point |
| Max. temperature | 60° C |
| Bubble point | Min. value with water 2.0 bar (29 psi) |
| Burst pressure | Min. value 7.0 bar (102 psi) |
| Filter diameter | 28 mm |
| Housing dimensions | 33 × 24 mm |
| Device type | Syringe Filters |
| Sample Type | Aqueous` Oils and alkanes according to chemical compatibility |
| Biosafety | All materials of this filter element meet the requirements of the current USP Biological Reactivity tests for plastics Class VI (Systemic Injection, Intracutaneous and Implantation tests). |
| Extractables | HPLC certified |
| Non-Fiber Releasing | This filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72. |
| Housing material | Acrylic-based multipolymer compound (MBS) |
| Total throughput | Up to 200 mL |
| CE Mark | CE 0120 |
| Application | Buffer & Media |
| Area of application | Pharmaceuticals Filtration` Clarification |
| pH Range | 4.0 – 8.0 |
| Sterilization Method | Ethylene oxide |
| Cytotoxicity | According to ISO 10993-5 |
