LABORATORY CENTRIFUGE

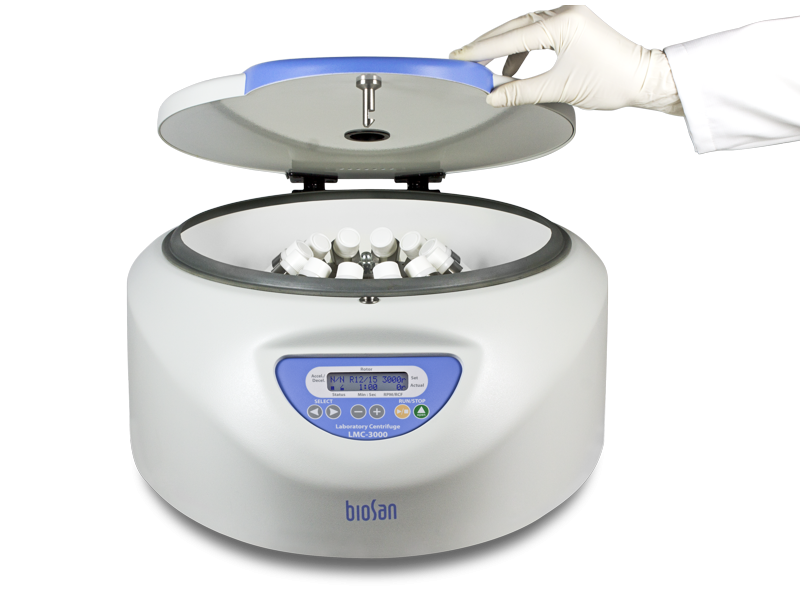

LMC-3000 is a modern low-speed bench-top centrifuge designed for operation with microtest plates and centrifuge tubes up to 50 ml. This device is widely used in biomedical profile laboratories.
Features:
- Soft start and run-down of the rotor;
- User-friendly setting of centrifugation parameters (speed and time) and simultaneous display of both set and actual values;
- Safe operation at any speed is provided by metal protection chamber and case cover, automatic stop at imbalance and a lock keeping the lid closed while the centrifuge is running;
- Rotor selection;*
- Setting rotor speed in RPM or RCF;*
- Multiple acceleration (Slow, Normal, Fast) and deceleration (0, Slow, Normal, Fast) modes and possibility to switch off forced braking;*
- Low noise level;
- Wide choice of accessory rotors.
| Speed regulation range for centrifuge tubes | 100-3000 rpm (1610 × g) |
| Speed regulation range for microtitre plates | 100-2000 rpm (560 × g) |
| Setting resolution | 100 rpm |
| Rotor imbalance diagnostics (automatic stop, “IMBALANCE” warning) | + |
| Display | LCD, 2 x 16 signs |
| Digital time setting | 1 - 90 min (increment 1 min) |
| Chamber diameter | 335 mm |
| Overall dimensions (W×D×H) | 495 x 410 x 235 mm |
| Weight | 11.8 kg |
| Nominal operating voltage | 230 V, 50/60 Hz or 120 V, 50/60 Hz |
| Power consumption (230V / 120 V) | 110 W (0.5 A) / 120 W (1 A) |
| Optional accessories | ||
| BS-010208-DK | Rotor R-6 | |
| BS-010208-XK | Rotor R-6P | |
| BS-010208-EK | Rotor R-12/15 | |
| BS-010208-BK | Rotor R-12/10 | |
| BS-010208-AK | Rotor R-2 | |
| BS-010208-VK | Rotor R-24GC | |
| BS-010208-UK | Rack for rotors RR-U | |
| ---------------- | ||
| BS-010208-PK | For rotor R-12/10 optional adapter set (12 pcs) - BN-13/75 for vacutainers 2-5 ml | |
| BS-010208-QK | For rotor R-12/10 optional adapter set (12 pcs) - BN-13/100 for vacutainers 4-8 ml | |
| BS-010208-RK | For rotor R-12/10 optional adapter set (12 pcs) - BN-16/100 for vacutainers 8-10 ml | |
| ---------------- | ||
| BS-010219-DK | For rotor R-2 optional adapter set (2 pcs) - AP-96 for 96-well semi-skirted and non-skirted PCR plates | |
| BS-010219-EK | For rotor R-2 optional adapter set (2 pcs) - AP-384 for 384-well plates | |
| ---------------- | ||
| BS-010208-GK | IQ OQ document | |
| BS-010208-LK | PQ document | |
| ---------------- | Replacement parts | |
| BS-010208-ZK | For rotor R-6P adapter set (6 pcs) - BN-11/30 | |
| BS-010208-TK | For rotor R-12/15 adapter set (12 pcs) - BN-17/120 | |
| BS-010208-SK | For rotor R-12/10 adapter set (12 pcs) - BN-16/90 |
R-6
Swing-out rotor for conical bottom centrifuge tube. RCF 1610 x g. Aluminium buckets.
Additional information about centrifuge rotors
R-6P
Swing-out rotor for conical bottom centrifuge tube. RCF 1610 x g. Plastic buckets (POM Kocetal).
R-12/15
Swing-out rotor for conical bottom centrifuge tube. RCF 1610x g
R-24GC
Rotor for 24 Gel Cards for blood group serology testing (Forward Group, Reverse Group, RhD Type and 3 cell antibody screen) RCF 280 x g
R-12/10
Swing-out rotor for round bottom centrifuge tube. RCF 1610 x g
BN-13/75, BN-13/100, BN-16/100 for R-12/10
Adapter set (12 pcs) for vacutainers® 2-5; 4-8; 8-10 ml - made of POM-C (polyacetal). Max temperature +100°C.
R-2
Swing-out rotor for standard 96-well microtitre plates, skirted PCR plates, deepwell plates up to 45mm. RCF 560 x g
AP-96 for R-2
2 adapters for 96-well semi-skirted and non-skirted PCR plates - made of Ertacetal® C. Autoclavable
RR-U
Rack for rotors
Declaration of conformity - minicentrifuge, laboratory centrifuges Click Here
LMC-3000 & LMC-4200R - User manual Click Here
LMC-3000, Laboratory Centrifuge Click Here
