MINI HEATING DRY BATH

MINI HEATING DRY BATH


Cat. No. : 1MJC-MD-MINI
Brand : : Major Science


SAVE
28%
฿ 8,000
11,000

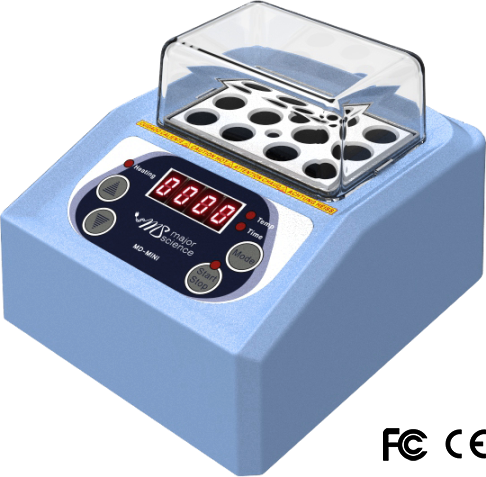

 The Mini Heating Dry Bath Incubator incorporates innovative ideas of compactness, performance and versatility. This palm-sized yet powerful device is designed to maximize benchtop space and enhance research productivity with ultra-precise temperature control. The interchangeable ability of heating blocks in various size permits accommodation of versatile tube sizes. Moreover, turn it into a water bath or bead bath with optional metallic thermal beads.

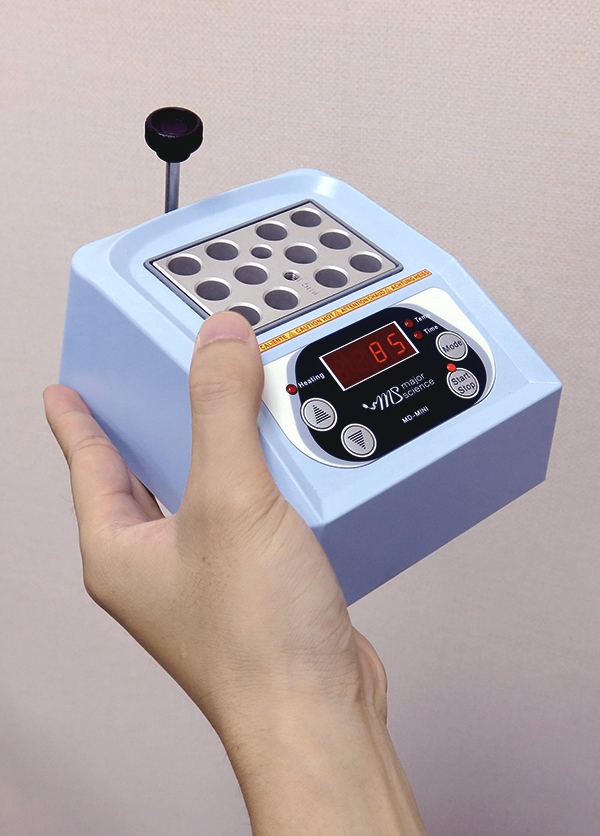

 Small size, fits in your palm

 User temperature calibration

 Single molded chamber, no cracks or welds

 PTFE coated chamber resists stains

 Can be used as a mini water bath or bead bath

 Outstanding heating rate

 Different sizes of heating block available for selection

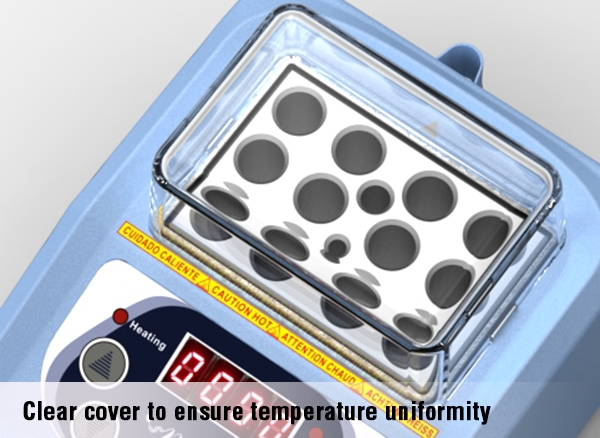

 Clear cover to ensure temperature uniformity

 Optional in-car power adaptor provides portability on the road

 proimages/4-Thermoblock_Reactor/Ordering_Info/MD-A001.png

 proimages/4-Thermoblock_Reactor/Ordering_Info/MD-A002.png

 proimages/4-Thermoblock_Reactor/Ordering_Info/MD-A003.png

with block

with water





Cat. No.

MD-MINI

Display

LED

Power

50W

Dimension (WxLxH)

Approx. 6"x4.9"x3.8" (153x125x97mm)

Controller

Digital microprocess controller

Heating Chamber

Molded waterproof aluminum alloy coated with PTFE

Temperature Control Range

5°C above ambient to 100°C

Temperature Increment

0.1°C

Temperature Uniformity

± 0.20°C at 37°C

Temperature Accuracy

± 0.25°C at 37°C

Temperature Calibration

Yes

Timer

9999 (min) / Continuous

Safety

Leak proof heating chamber

Over temperature protection

Operating Temperature

Ambient to 40°C

Special Feature

Used as water bath or bead bath

Block Material

Aluminum alloy

Block Type

Standard and customized type are available

Rated Voltage

100V-240V~

Weight

Approx. 1.3lb (0.6kg)

Blocks

Block Material

Aluminum alloy

Dimension (WxLxH)

Approx. 1.9"x2.8"x1.3" (47x71x32mm) /

Approx. 1.9"x2.8"x3" (47x71x75mm)

Block Lifter Well

Yes

Thermometer Well

Yes



Cat. No.

Product Description

MD-MINI-B01

For 0.2ml tube (PCR strip tube), 32 wells, φ6.35mm, depth 19mm,

(WxLxH) 47x71x32mm

MD-MINI-B02

For 1.5ml tube, 12 wells, φ10.8mm, depth 28.5mm, (WxLxH) 47x71x32mm

MD-MINI-B03

For 15ml tube, 6 wells, φ17.3mm, depth 70mm, (WxLxH) 47x71x75mm

MD-MINI-B04

For 50ml tube, 2 wells, φ29.2mm, depth 72mm, (WxLxH) 47x71x75mm

MD-MINI-B05

For 0.5ml tube, 12 wells, φ8.0mm, depth 25mm, (WxLxH) 47x71x32mm

MD-MINI-B06

For 2.0ml or 1.5ml tube, 12 wells, φ11.0mm, depth 30mm, (WxLxH) 47x71x32mm

MD-MINI-B07

For 1.5ml tube, 12 wells, φ10.9mm, depth 30mm, (WxLxH) 47x71x32mm

MS-BL95-E

Block Lifter, 95mm length, with E-type retaining rings





MD-MINI-LID

MD-MINI lid, (WxLxH) 83x58.5x31.5mm

MD-MINI-CAR-ADAPTER

Car adapter for MD-MINI and MC-0203, 1.5M
