COOL-HOTTER DRY BATH

Category

Close
    1. Heat Block
    2. Dry Bath
    3. Block


1MJC-MC-01N-220

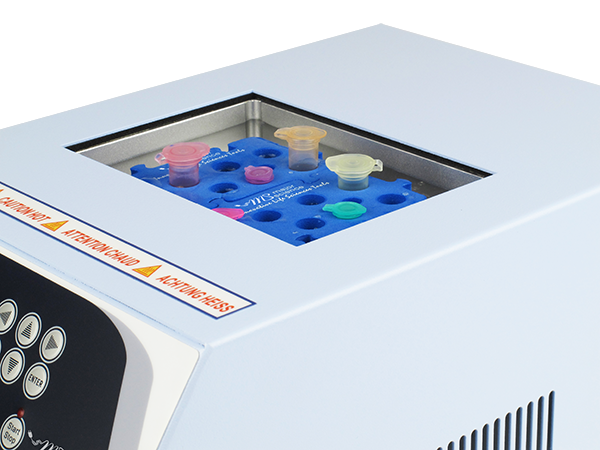

COOL-HOTTER DRY BATH


Cat. No. : 1MJC-MC-01N-220
Brand : : Major Science




Ultimate Dry Bath Incubator is available with different heating and cooling profiles, along with a broad selection of interchangeable blocks. The model is designed for a variety of applications including ligation, restriction digest, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and hot start thermo-cycled reaction. The built-in 2.6" LCD screen permit instant viewing and selection of operation modes: constant, programmable and annealing. The microprocessor controller offers performance, precise control as well as rapid heating and cooling efficiency with excellent stability. The temperature can be set in 0.1°C increments, from -10°C to 100°C. Optional PC control software is available for real time data logging.

• Digital microprocessor offers performance and precise control

• Broad temperature control range & guaranteed uniformity

• Highly efficient heating & cooling rates

• Large LCD screen for easy selection of operation modes and setting inputs

• User temperature calibration

• Also a mini water bath and bead bath

• Optional PC control software available

proimages/4-Thermoblock_Reactor/MC-01N-pic.png
Green: Temp. set value:100°C
Red: Initial temp. value:25°C
Block model: MC-B0.2+0.5+1.5
Process time: Approx. 17mins

proimages/4-Thermoblock_Reactor/MC-01N-pic2.png
Green: Temp. set value:0°C
Red: Initial temp. value:100°C
Block model: MC-B0.2+0.5+1.5
Process time: Approx. 62mins



proimages/4-Thermoblock_Reactor/Ordering_Info/MC-02-A006.png
Annealing Program
Initial Temp.  95.0
Descending Temp.  5.0
Holding Time.  5
Final Temp.  4.0



Cat. No.

MC-01N

Chamber Dimension (WxLxH)

Approx. 5.1"x3.5"x2" (130x90x50mm)

Display

2.6" LCD

Power

400W

Dimension (WxLxH)

Approx. 7.9"x11.6"x5.5" (200x295x140mm)

Controller

Digital microprocess controller

Heating Chamber

Molded Waterproof aluminum alloy coated with PTFE

Temperature Control Range

30oC below ambient temperature ( minimum -10oC ) to 100oC

Temperature Increment

0.1oC

Temperature Uniformity

± 0.2oC at 37°C

Temperature Accuracy

± 0.2oC at 37°C

Temperature Calibration

Yes

Operation Mode

Constant operation: constant temperature ( -10oC to 100oC ); Timer: 9999 (min)

Program operation: 1-4 steps and up to 9 cycles; timer: 9999 (min)

Annealing program

Safety Device

Leak proof heating chamber

Operating Temperature

Ambient to 40oC

Special Feature

Can be used as water bath or bead bath incubator

Block Material

Aluminum alloy

Block Type

Standard and customized type are available

PC Connection

RS232

Rated Voltage

110V / 220V~

Weight

Approx. 17.6lb (8kg)

Blocks

Ultimate MC Block

Dimension (WxLxH)

Approx. 3.5"x5.1"x1.8" (89x129x46mm)

Block Material

Aluminum alloy

Block Lifter Well

Yes

Thermometer Well

Yes ( except microplate blocks )



Cat. No.

MC-01S

Chamber dimension (WxLxH)

5.11"x3.54"x1.18" (130x90x30mm)

Display

2.6" LCD

Power

400W

Dimension

(WxLxH) 7.87"x11.61"x5.51" (200x295x140mm)

Controller

Digital microprocess controller

Heating chamber

Molded Waterproof aluminum alloy coated with PTFE

Temperature control range

30oC below ambient temperature ( minimum -10oC ) to 100oC

Temperature increment

0.1oC

Temperature uniformity at 37oC

± 0.2oC

Temperature accuracy at 37oC

± 0.2oC

Temperature calibration

Yes

Operation mode

Constant operation: constant temperature ( -10oC to 100oC ); Timer: 9999 (min)

Program operation: 1-4 steps and up to 9 cycles; timer: 9999 (min)

Annealing program

Safety device

Leak proof heating chamber

Operating temperature

Ambient to 40oC

Special feature

Can be used as water bath or bead bath incubator

Block material

Aluminum alloy

Block type

Standard and customized type are available

PC Connection

RS232

Rated voltage

110V / 220V

Weight

Approx. 17.6lb (8kg)

Blocks

Ultimate plus MC Block

Dimension (WxLxH)

3.54"x5.08"x1.18" (90x129x30mm)

Block material



Cat. No.

Product Description

MC-RS232

RS 232 cable

MC-PCSW

Function control software package

MC-PCSW-R

Function control software package; including a RS232 cable

MC-MP01

For microplate; titerplate ( Plain Block )

MC-MP02

For 96 wells deep microplate or PCR plate

MC-B0.5

For 0.5ml, 30 wells

MC-B1.5

For 1.5 or 2.0ml, 30 wells

MC-B0.5+1.5

Combination: for 1.5ml or 2.0ml tube, 15 wells and 0.5ml tube, 15 wells (on the same side)

MC-B0.2+0.5+1.5

Combination: 0.2ml tube (or strip tube for 8 wells ), 24 wells; 1.5ml or 2.0ml tube, 10 wells and 0.5ml tube, 10 wells (on the same side)

MC-B13

Well size 13mm, 30 wells

MC-B17

For 15ml centrifuge tube, 15 wells

MC-B20

Well size 20mm, 15 wells

MC-B25

Well size 25mm, 6 wells

MC-B29

For 50ml centrifuge tube, 6 wells

MC-B0.2H

(1/2) half block for 0.2ml tube, 40 wells ( or 0.2ml PCR strip tube for 8 wells x 5)



One Ultimate Dry Bath Incubator can insert 2ea of half block

MC-B0.5H

(1/2) half block for 0.5ml tube, 15 wells



One Ultimate Dry Bath Incubator can insert 2ea of half block

MC-B1.5H

(1/2) half block for 1.5 or 2ml tube, 15 wells



One Ultimate Dry Bath Incubator can insert 2ea of half block

 Catalogue_W15-DryBathIncubato Click Here

Catalogue_W15-DryBathIncubato Click Here
