SARTOLAB FILTER P20 PLUS, 0.2 UM, 10/PKG

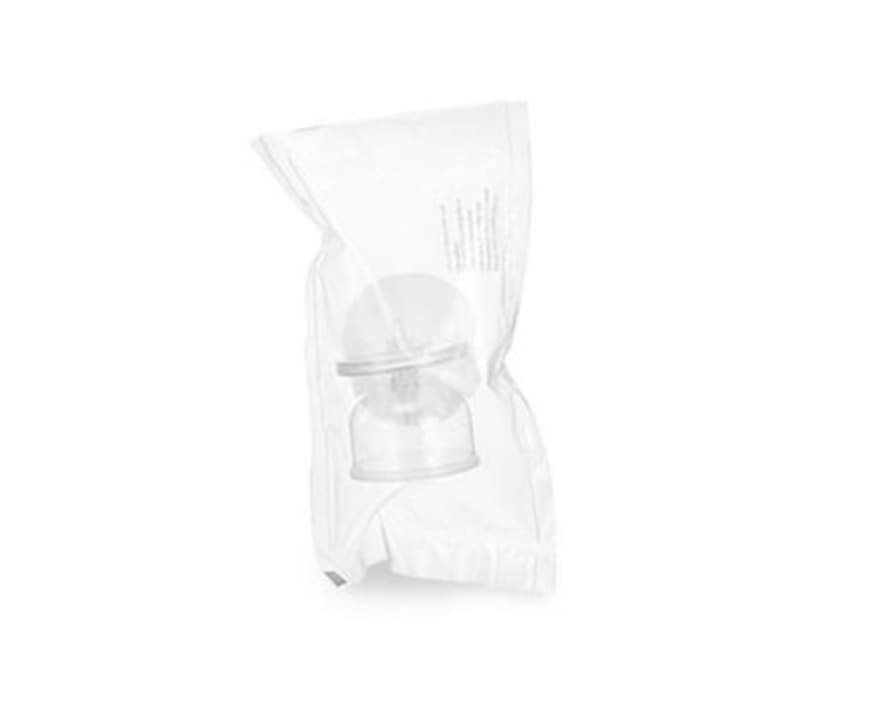

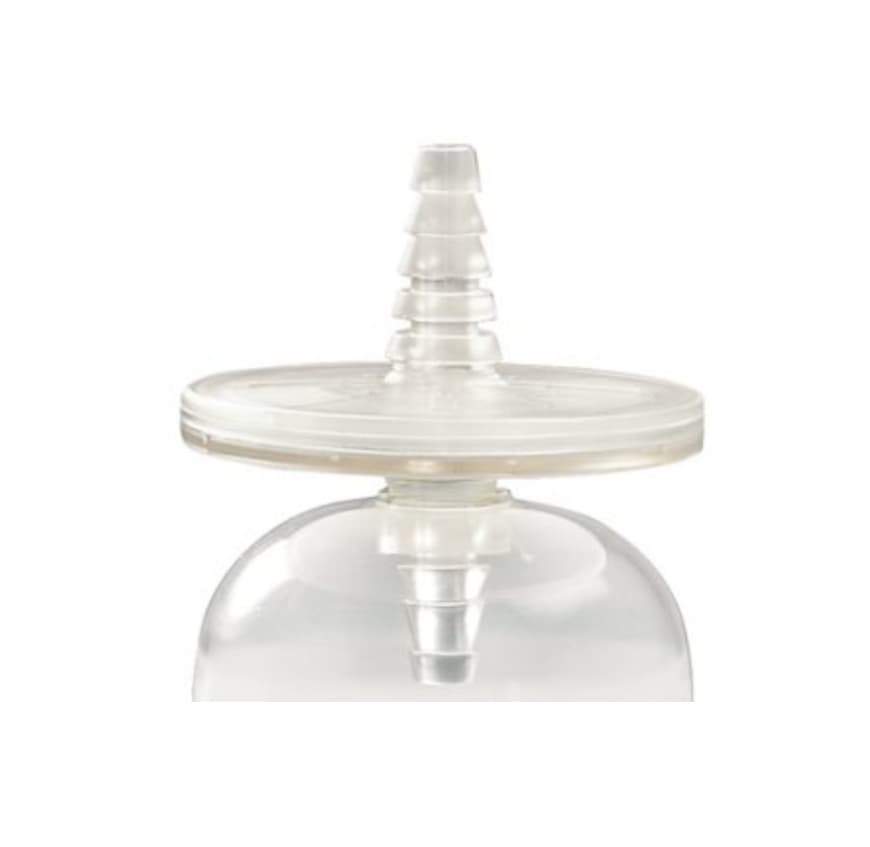

Sartolab® P20 Plus with 0.2 µm surfactant-free cellulose acetate (SFCA) is designed for sterile filtration of media and aqueous solutions. It has a glass fibre prefilter and is optimized for particle-laden liquids for a higher total throughput. Type 18056 has a hose barb inlet and outlet. Version D is individually packed and sterilized by ethylene oxide (EO).
Sartolab® P20 units can be processed with pressure using a syringe, a membrane pump, or a tube pump. This allows the quick and reliable sterilisation of 100 ml to 5 liter of media and aqueous solutions. The combination of a large filtration area (20 cm²) and automatic venting of any trapped air through vent ports ensures high flow rates and optimal total throughputs. The vent ports are PTFE membrane-protected and ensure that the entire filter surface is used for effective filtration. All versions with SFCA filtration membrane which is optimized for aqueous liquids are equipped with PTFE vent ports. By solvents and solvent mixtures vent ports get permeable and the filter unit would start leaking through them. Thus, for solvent mixtures we recommend using units with PES membrane.
- Fast filtration
- Economic
- Highest throughput
- With PTFE vent ports
| Product properties | |
| Primary Product Type | Filtration Devices |
| Brand | Sartolab® |
| Membrane material | Surfactant-free Cellulose Acetate (SFCA), Glass Fiber (GF) Prefilter |
| Material prefilters | Glass Fiber (GF) |
| Glass fibre prefilter | No |
| Connector Outlet | Hose Barb 6–12 mm Stepped |
| Connector Inlet | Hose Barb 6–12 mm Stepped |
| Connectors | Inlet, luer lock inner cone or 6-12 mm stepped hose nipple. Outlet, 6-12 mm stepped hose nipple |
| Colour | Clear |
| Filling bell | Yes |
| Sterility | Sterile |
| Packaging | Single pouch packed |
| Filtration area | 20 cm² |
| Flow rate | 250 mL/min with water at 1 bar (14.5 psi) |
| Pore size | 0.2 µm |
| Wettability | Hydrophilic |
| Technical attributes | |
| pH Range | 4.0 – 8.0 |
| Device type | Pressure Filters |
| Sample Type | Aqueous |
| Sterilization Method | Ethylene oxide |
| Application | Buffer & Media` Cell Removal / Harvest |
| Area of application | Sterile Filtration` Clarification |
| Operating Pressure | 3 bar (44 psi) |
| Hold-up volume | 1.5 mL before bubble point |
| Max. temperature | 50° C |
| Bubble point | Min. value with water 3.2 bar (46 psi) |
| Burst pressure | Min. value 5.0 bar (72.5 psi) |
| Filter diameter | 50 mm |
| Housing dimensions | 64 × 68 mm |
| Filling volume | 5.5 mL |
| Biosafety | All materials of this filter element meet the requirements of the current USP Biological Reactivity tests for plastics Class VI (Systemic Injection, Intracutaneous and Implantation tests). |
| Non-Fiber Releasing | This filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72. |
| Vent | Lid with Polytetrafluoroethylene (PTFE) vent |
| Housing material | Polycarbonate (PC) |
| Total throughput | Up to 10 L |
Sartolab® P — The new way for reliable sterile filtration of cell culture media Click Here
Laboratory Filtration Products Click Here
Laboratory Filtration Products (US and Canada) Click Here
Sartolab®-P20 | Sartolab®-P20 plus Click Here
Related
-

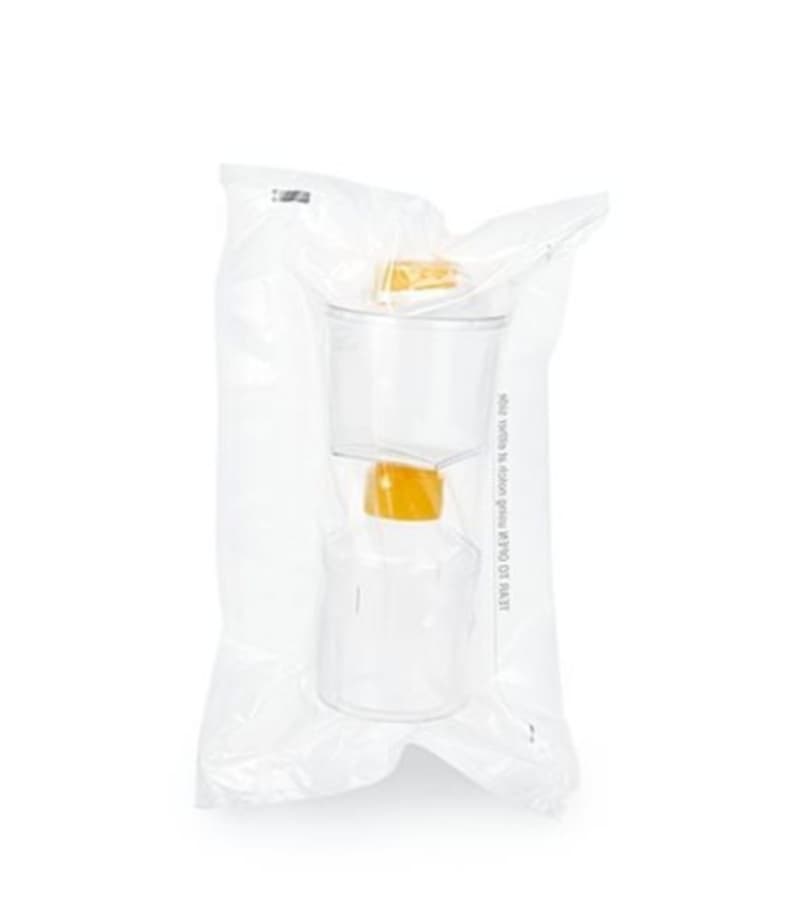

SARTOLAB RF VOLUME 500 ML. W/RECEIVER FLASK, 12/PKG
2SRF2-180C2-E
-

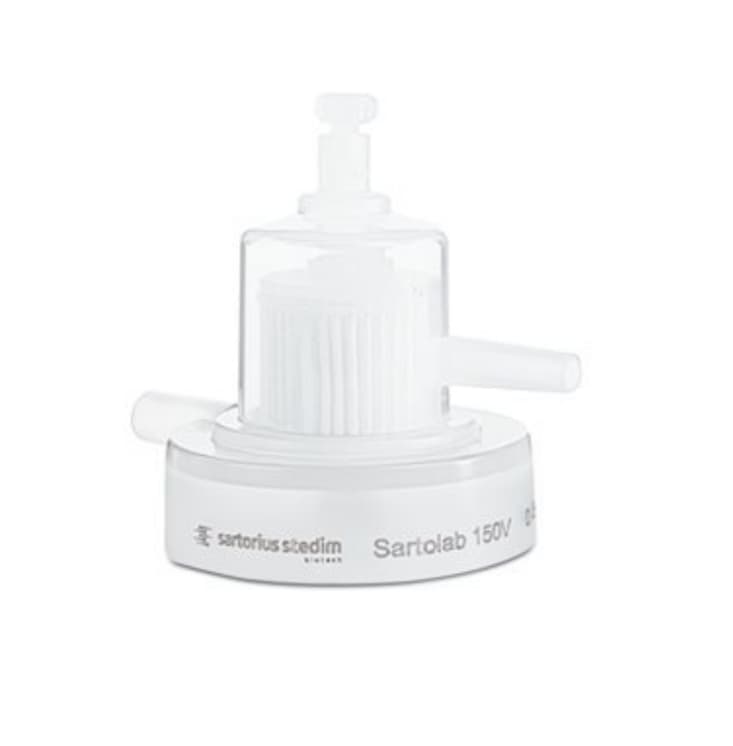

SARTOLAB 150V, STERILE FLASK HOLDER 0.2 UM, 3/PKG
2SRF2-18080 M
-

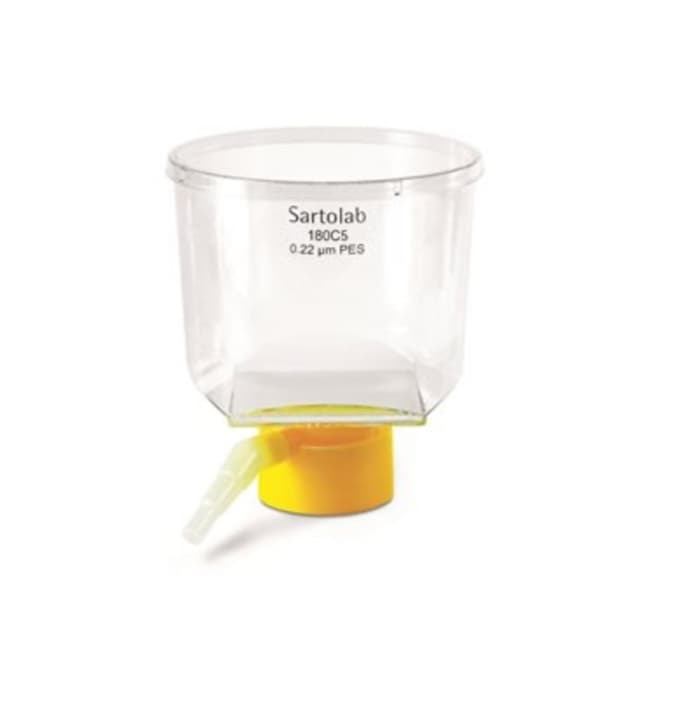

SARTOLAB BT500 PES, 0.22 UM. STERILE, 12/PKG
2SRF2-180C5-E
-

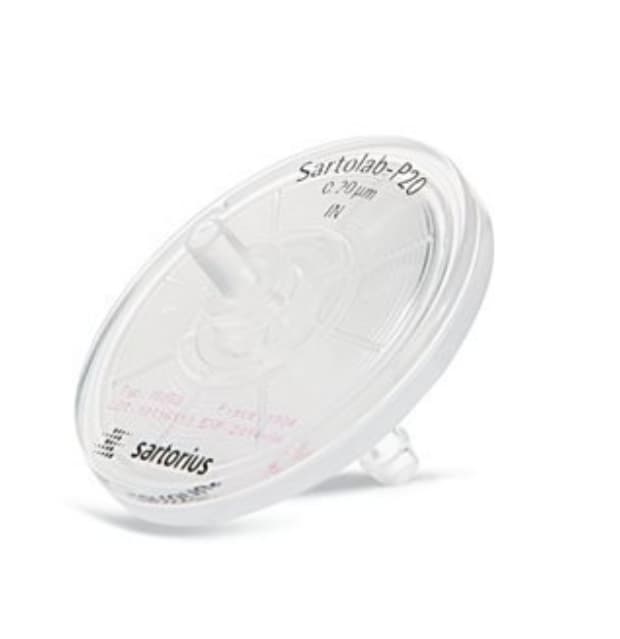

SARTOLAB FILTER P20, 10/PKG
