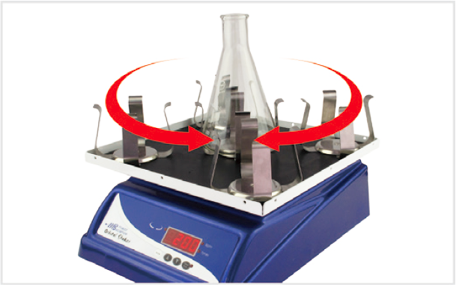

MS ORBITAL SHAKER W/30x30 CM. PLATFORM
Three different shaking motions of MS Shaker series is provided for many general purpose shaking application in chemical and life sciences laboratories. The Orbital Shaker digitally controls clockwise and/or counter-clockwise orbits to create superb mixing efficiency. The Reciprocal Shaker features a horizontal (left to right) linear action to provide gentle to vigorous shaking motion. The Rocking Shaker provides a "12-degree" tilted angle rocking motion for variety of applications. All three models provides continuous or timed operation with integral electronic timer, LED display, audible signal for automatic switch-off timed control, interchangeable/stacking platforms. Reciprocal shaker can hold up to 15kg of weight whereas rocking and orbital shaker can hold up to 10kg(orbital) and 8kg(rocking), respectively.
For Anti-moisture model
The MS Anti-moisture Shaker series offers the same capabilities as our original MS shaker series with moisture protection coating. The moisture protection allows you to operate the shaker in cold-room or low temperature environment. An anti-moisture coating is applied on the electrical structure to minimize and prevent the forming of condensation when operating in & out of the cold room. Standard features and accessories from the MS shaker series apply to all three different models.
• Continuous one way orbital shaking or two ways clockwise/
counter-clockwise orbital shaking
• Continuous or timed operation with auto shut-off
• Variable shaking speed up to 200rpm for MS-NOR-30
• Variety of accessories available
• Max. 22.0lb (10kg) loading capacity for MS-NOR-30
• Special anti-moisture coating allows smooth operation in cold room environment or CO2 incubation
• Optional 300x300mm platform available for your selection.
Platform capability of Flask Holders
| Flask | MS-NOR-30 |
| 50ml | 13 |
| 125ml | 12 |
| 250ml | 9 |
| 500ml | 5 |
| 1000ml | 4 |
| 2000ml | 1 |
| Cat. No. | MS-NOR-30 /(MS-NOR-3001**) |
| Motion | Orbital |
| Moving Feature | Orbital action in one direction or two directions |
| Bi-directional Shaking | 0.1 - 10 circle / 0.1 circular increment |
| Maximum Tilt Angle | N / A |
| Maximum Stroke Length | 20mm |
| Controller | Digital microprocessor controller |
| Speed/Inc. | 0 - 200rpm / 1rpm |
| Timer | 9999 (min) with alarm / Continuous |
| Loading Capacity | 22.0lb (10kg) |
| Motor | Stepping motor |
| Operating Temperature | Ambient to 40oC |
| Platform Dimension (WxL) | Approx. 1.2"x1.2" (300x300mm) |
| Platform Material | Painted iron metal |
| Stacking Platform | Yes |
| Dimension (WxLxH) | Approx. 11.8"x12.2"x5.1" (300x310x130mm) |
| Material | ABS and Painted iron metal |
| Weight | Approx. 15.4lb (7.0kg) |
| Rated Voltage | 110V / 220V~ selectable; 50/60Hz; 0.63A |
| * Anti-moisture coating | |
| Cat. No. | Product Description |
| MW-SP | Strip springs (pack of 2), 265mm |
| MS-P3030 | Additional 300x300mm platform with attachable 100mm pillars 8pcs and flat non-slip rubber mat |
| MS-DIMPLED-30 | 300x300mm dimpled mat |
| MS-FLAT-30 | Non-slip rubber mat 300x300mm |
| MS-UP-30 | Universal adjustable platform, 300x300mm (Maximum capacity: 2x2Lflasks) |
| PPL-04-SI-SI-200-3 | Sticky Pad 200x200mm |
| SI-200-08 | Flask Holder, 50ml |
| SI-200-09 | Flask Holder, 125ml |
| SI-200-10 | Flask Holder, 250ml |
| SI-200-11 | Flask Holder, 500ml |
| SI-200-12 | Flask Holder, 1000ml |
| SI-200-13 | Flask Holder, 2000ml |
Catalogue_W13-shakerClick Here
Brochure-016-Shaker Click Here
