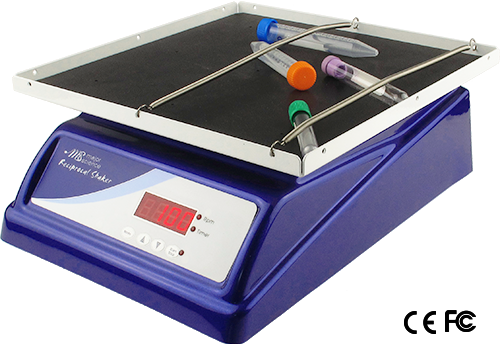

RECIPROCAL SHAKER W/30x30 CM. PLATFORM & RUBBER MAT

RECIPROCAL SHAKER W/30x30 CM. PLATFORM & RUBBER MAT


Cat. No. : 2MJC-MS-NRC-30
Brand : : Major Science




 Three different shaking motions of MS Shaker series is provided for many general purpose shaking application in chemical and life sciences laboratories. The Orbital Shaker digitally controls clockwise and/or counter-clockwise orbits to create superb mixing efficiency. The Reciprocal Shaker features a horizontal (left to right) linear action to provide gentle to vigorous shaking motion. The Rocking Shaker provides a "12-degree" tilted angle rocking motion for variety of applications. All three models provides continuous or timed operation with integral electronic timer, LED display, audible signal for automatic switch-off timed control, interchangeable/stacking platforms. Reciprocal shaker can hold up to 15kg of weight whereas rocking and orbital shaker can hold up to 10kg(orbital) and 8kg(rocking), respectively.

For Anti-moisture model

The MS Anti-moisture Shaker series offers the same capabilities as our original MS shaker series with moisture protection coating. The moisture protection allows you to operate the shaker in cold-room or low temperature environment. An anti-moisture coating is applied on the electrical structure to minimize and prevent the forming of condensation when operating in & out of the cold room. Standard features and accessories from the MS shaker series apply to all three different models.

• Continuous one way orbital shaking or two ways clockwise/ counter-clockwise orbital shaking

• Continuous or timed operation with auto shut-off

• Variable shaking speed up to 200rpm for MS-NOR-30

• Variety of accessories available

• Max. 33lb (15kg) loading capacity for MS-NRC-30

• Special anti-moisture coating allows smooth operation in cold room environment or CO2 incubation

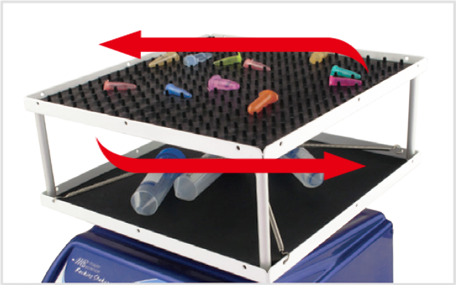

• Optional 300x300mm platform available for your selection.



Platform capability of Flask Holders



Flask

Max. set of flask holder



MS-NRC-30

MS-NRK-30

50ml

13

125ml

12

250ml

9

500ml

5

1000ml

4

2000ml

2



proimages/6-MS_Shaker/MS-NOR_info01.png



Cat. No. MS-NRC-30 /(MS-NRC-3001**)
Motion Reciprocal
Moving Feature Steady moving motion at 5rpm
Bi-directional Shaking N / A
Maximum Tilt Angle N / A
Maximum Stroke Length 20mm
Controller Digital microprocessor controller
Speed/Inc. 5 - 100rpm / 1rpm
Timer 9999 (min) with alarm / Continuous
Loading Capacity 33.0lb (15kg)
Motor DC brushless type
Operating Temperature Ambient to 40oC
Platform Dimension (WxL) Approx. 1.2"x1.2" (300x300mm)
Platform Material Painted iron metal
Stacking Platform Yes
Dimension (WxLxH) Approx. 11.8"x12.2"x5.1" (300x310x130mm)
Material ABS and Painted iron metal
Weight Approx. 15.4lb (7.0kg)
Rated Voltage 110V / 220V~ selectable; 50/60Hz; 0.63A
 * Anti-moisture coating
Cat. No. Product Description
MW-SP Strip springs (pack of 2), 265mm
MS-P3030 Additional 300x300mm platform with attachable 100mm pillars 8pcs and
flat non-slip rubber mat
MS-DIMPLED-30 300x300mm dimpled mat
MS-FLAT-30 Non-slip rubber mat 300x300mm
MS-UP-30 Universal adjustable platform, 300x300mm (Maximum capacity: 2x2Lflasks)
PPL-04-SI-SI-200-3 Sticky Pad 200x200mm
SI-200-08 Flask Holder, 50ml
SI-200-09 Flask Holder, 125ml
SI-200-10 Flask Holder, 250ml
SI-200-11 Flask Holder, 500ml
SI-200-12 Flask Holder, 1000ml
SI-200-13 Flask Holder, 2000ml

 proimages/6-MS_Shaker/MS-NOR_parts.png

 proimages/10-Winpact/Flask.png

Flask holder
Cat. No.: SI-200-08~13

*MS-UP-30 is compatible with MS-NRK, MS-NRC and MS-NOR series.
