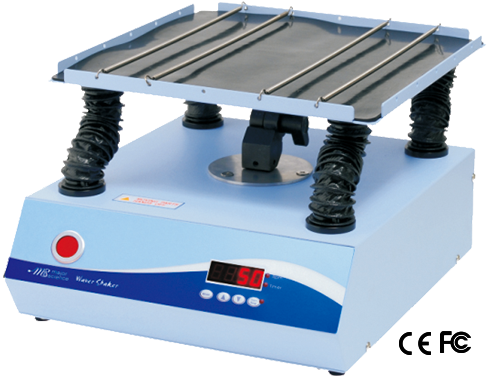

2/3 D WAVER SHAKER
Waver Shaker offers optimal movement for the multiple staining and washings involved in gel, blotting, microscopy and immunostaining applications. Its combination of vertical and horizontal orbital motion provides more rapid exchange of solvents and greater mixing efficiency.
Hybridization Water Bath is offered along with the Waver Shaker for wet hybridization, and it is even used as a shaking water bath. It is a digital controlled instrument equipped with a RS- 232 port for data logging. It provides the temperature uniformity which hybridization processes requires.

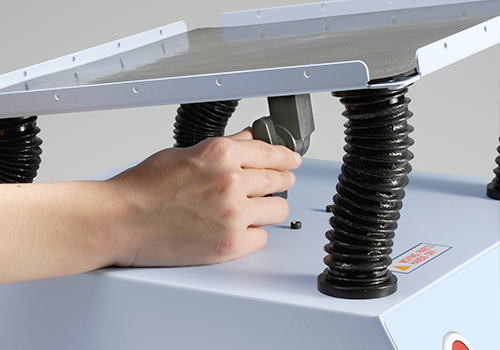

Adjustable platform angle for 3D movement.• Continuous or timed operation with automatic shut-off mechanism
• Variable shaking speed from 5 to 100rpm for mixing and washing action
• Two shaking movements in 2D or 3D
• Adjustable platform angle
• Interchangeable/stacking platform and extendable shelves available
• 33.0lb (15kg) loading capacity
• LED display for easy reading
• 4 digits red LED display
• High quality DC brushless motor
• Easy expandable shelf installation
Platform capability of Flask Holders
|
Flask |
Maxi set of flask holder |
|
125ml |
9 / *12 |
|
250ml |
9 |
|
500ml |
9 |
|
1000ml |
1 / *5 |
| Cat. No. | MW-23 |
| Motion | Orbital and Nutation( 2D or 3D ) |
| Controller | Digital microprocessor controller |
| Speed/Inc. | 5 ~ 100rpm / 1rpm |
| Maximum tilt angle | 8o |
| Timer | 9999 (min) with alarm / Continuous |
| Loading capacity | 33.0lb (15kg) |
| Motor | DC brushless type |
| Operating temperature | Ambient to 40oC |
| Platform dimension (WxL) | 1.3"x1.3" (33x33cm) |
| Plateform material | Painted iron alloy |
| Dimension (WxLxH) | 13.19"14.6"x9.1" (335x370x230mm) |
| Material | Painted iron metal |
| Weight | Approx. 22.0lb (10kg) |
| Rated voltage | 110V~ / 230V~ (selectable) |
| Cat. No | MW-WB |
| Display | 4 Digital LED |
| Controller | Digital microprocessor controller |
| Bath temperature | Ambient to 95oC |
| Timer | 9999 (min) with alarm / Continuous |
| Bath tank material | 304 stainless steel |
| Bath inner dimensions (WxLxH) | 9.45"x10.63"x1.97" (240x270x50mm) |
| Bath capability | Approx. 0.74gal (2.8L) |
| Operating temperature | Ambient to 40oC |
| Dimension (WxLxH) | 11.81"x11.81"x11.42" (300x300x290mm) |
| Material | Painted iron metal |
| Lid material | Transparent acrylic material assembled with stainless steel construction |
| Data log | RS232 |
| Weight | Approx. 15.4lb (7.0kg) |
| Rated voltage | 110V / 220V |
|
Cat. No. |
Product Description |
|
MW-SP |
Strip springs ( pack of 2 ), 265mm |
|
MW-P3333 |
Additional 33x33cm platform with flat non-slip rubber mat ( with 8 of attachable 10cm or 20cm pillars ) |
|
MW-DIMPLED |
33x33cm dimpled mat |
|
MW-FLAT |
33x33cm non-slip rubber mat |
|
MW-SL |
Supporting leg ( pack of 4 ) |
|
PPL-04-SI-SI-200-3 |
Sticky Pad 20x20cm |
|
Cat. No. |
Product Description |
Max. platform capacity |
|
SI-200-08 |
Flask holder, 50 ml |
9/ **21 |
|
SI-200-09 |
Flask holder, 125 ml |
9/ **12 |
|
SI-200-10 |
Flask holder, 250 ml |
9 |
|
SI-200-11 |
Flask holder, 500 ml |
9 |
|
SI-200-12 |
Flask holder, 1000 ml |
1/ **5 |
** Customized Specification
Flask holder
Cat. No.: SI-200-08~12
Catalogue_W13-shaker Click Here
Brochure-016-Shaker Click Here
Related
-

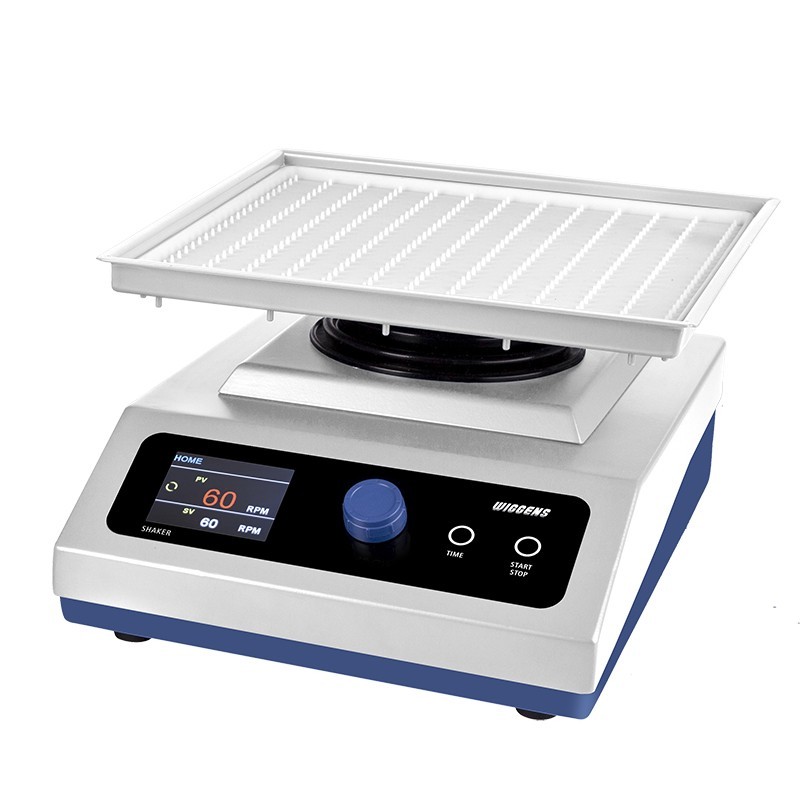

WS-350W WAVING SHAKER, SPEED RANGE 8-100 RPM, INCL. REMOVABLE TRAY
