F250 HEAT RECIRRCULATING UNIT

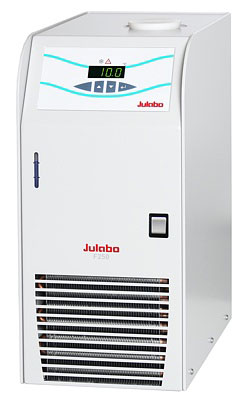

F250 Recirculating Cooler
for simple cooling tasks
JULABO F models require very little space and have very low procurement costs. Recirculating coolers of the F Series are a great way to replace costly tap water and are ideal for basic cooling tasks
Your advantages
- Environmentally-friendly operation with low energy consumption
- Compact design
- Splash-proof membrane keypad with LED temperature display
- Straightforward filling and draining
- Filling level indicator
- May be used with water, water/glycol, JULABO Thermal G
Technical Data
| Order No. | 9620025 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model series | F Series | ||||||||||||
| Category | Recirculating Coolers | ||||||||||||
| Working temperature range (°C) | -10 ... +40 | ||||||||||||
| Temperature stability (°C) | ±0.5 | ||||||||||||
| Temperature control | PID temperature control | ||||||||||||
| Setting / display resolution | 0.1 °C | ||||||||||||
| Temperature Display | LED | ||||||||||||
| Cooling capacity (Medium Ethanol) |
|
||||||||||||
| Pump capacity flow rate (l/min) | 15 | ||||||||||||
| Pump capacity flow pressure (bar) | 0.35 | ||||||||||||
| Pump connections | M10x1 | ||||||||||||
| Barbed fittings diameter (inner dia. / mm) | 8 / 10 | ||||||||||||
| Filling volume (liters) | 1.7 ... 2.6 | ||||||||||||
| Refrigerant stage 1 | R134a | ||||||||||||
| Filling volume refrigerant stage 1 (g) | 113 | ||||||||||||
| Global Warming Potential for R134a | 1430 | ||||||||||||
| Carbon dioxide equivalent stage 1 (t) | 0.162 | ||||||||||||
| Ambient temperature | 5...40 °C | ||||||||||||
| Dimensions W x L x H (cm) | 24 x 40 x 52 | ||||||||||||
| Weight (kg) | 27 | ||||||||||||
| Sound pressure level (distance 1 m) max. (dBA) | 59 | ||||||||||||
| Included with each unit | 2 each barbed fittings for tubing 8 and 10 mm inner dia. (pump connections M10x1 male) | ||||||||||||
| Cooling of compressor | Air |
Product data sheet F250 Click Here
Operating manual F250 Click Here
Related
-

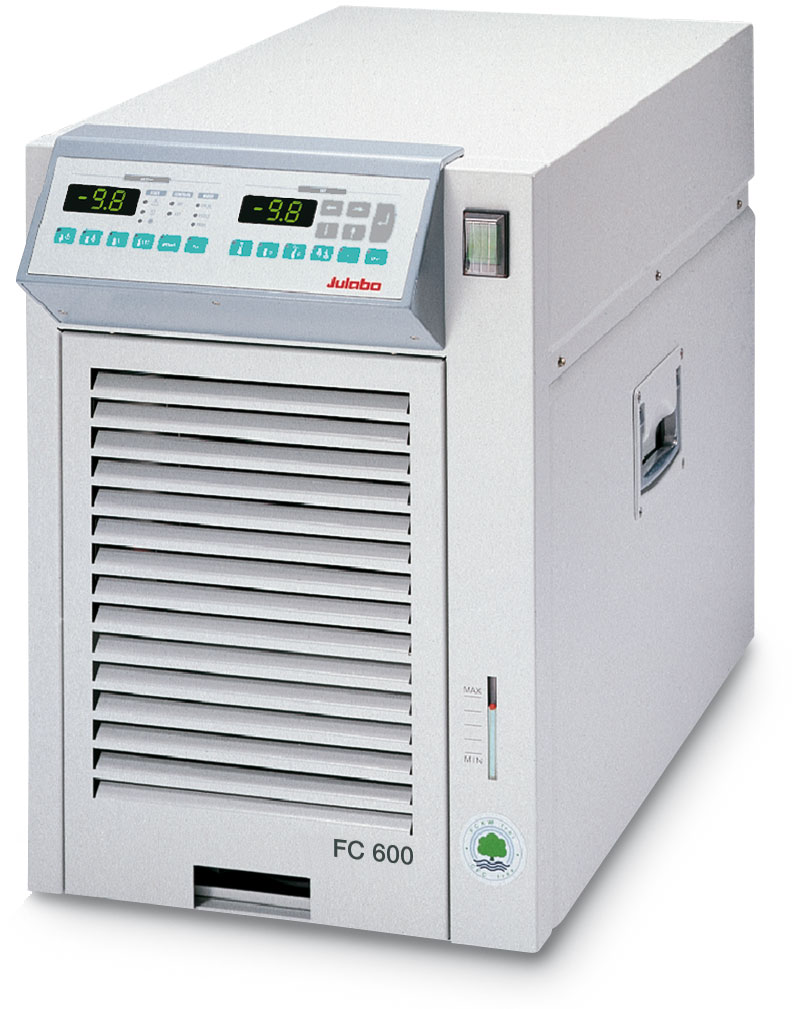

FC600 Recirculating Cooler
2JLG-9660060
-
WINPACT CHILLER, 220 V.
2WP-WCC-101
-

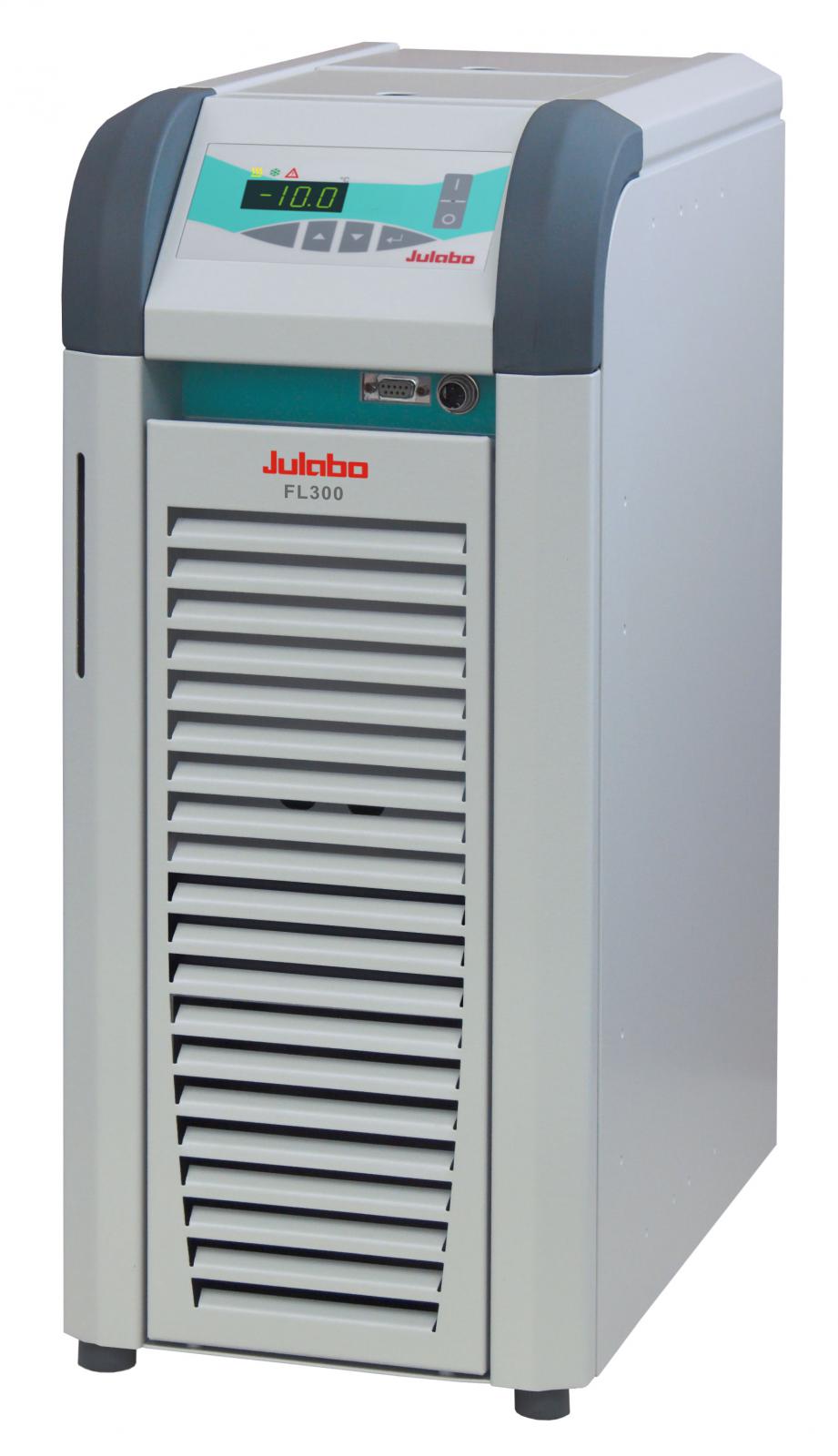

FL-300 RECIRCULATING UNIT
