MS-12CH PIPTTE VARIABLE VOLUME : 2-20 UL

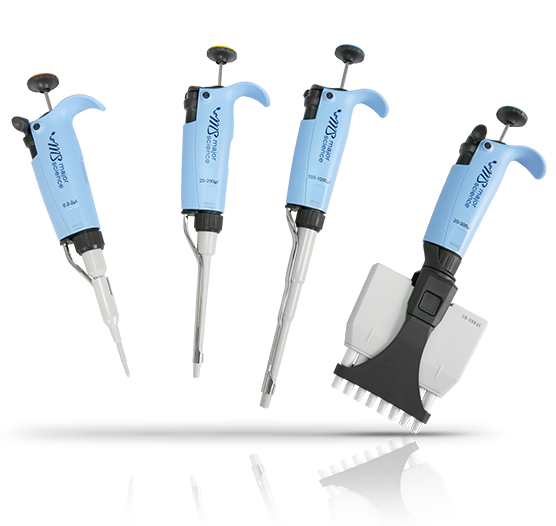

MS Pipette is a reliable instrument that can perform accurate, contamination-free experiment with ease. Based on the latest innovation in terms of ergonomics and comfort, the main body is designed for easy operation by either right or left hand, big or small hand. The new piston mechanism design requires low pipetting force and low maintenance frequency. The robust construction is fully autoclavable and chemical resistant, which provides user contamination-free and safe experiment environment. On site calibration is easy to perform. In addition, MS Pipette is compatible with a majority of brands of tips on the market. With ISO certification, Major Science provides customers with the “Best Value” combination of quality, features, service and price. All accessory parts are available through Major Science service centers

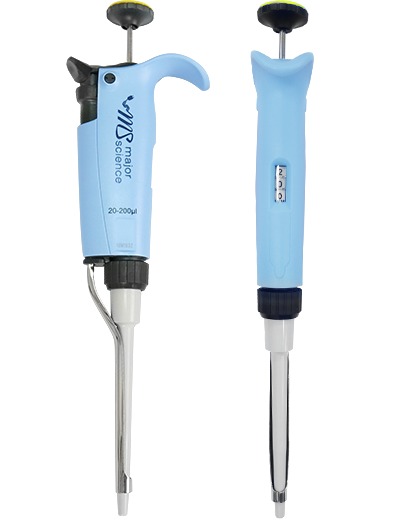

Product Introduction
Precise volume adjustment & light pipetting forces

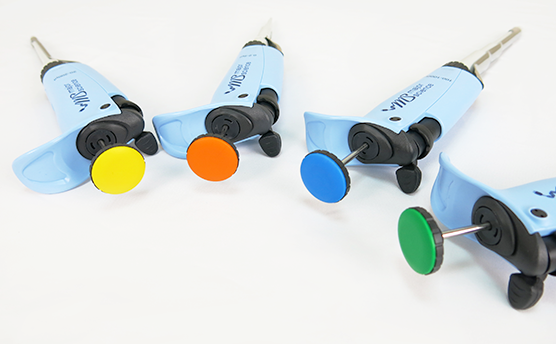

A.Color-coded push-button Color-coded push-button
B. Operating-rod Operating-rod
C.Easy tip ejection
D. Volumeter display (Counter)
E.Connecting nut Connecting nut
F. Tip-holder Tip-holder
G. Easy tip-ejector removal Easy tip-ejector removal
Use the serial number to identify the pipette and to determine its age.
Major Science Pipette Tip Adapter
• Light weight
• Soft spring system for extremely low pipetting forces
• Controlled volume setting to prevent accidental volume changes
• Large volume display
• Contoured shape: fits either small or large hands
• Large pushbutton, rounded and freely rotating
• Finger hook: takes the weight, for a more relaxed grip
• 3-position tip ejector button (left/right handed users)
• Easy on site calibration (calibration key included)
• High accuracy and precision
• A unique serial number
• UV resistance even prolonged exposure
• Fully autoclavable (121°C/0.1MPa/20 min)
Conception of new seals and lighter springs and use of high quality lubricant:
• Reduce pipetting and purge forces by 50%
• Have an easy glide of the piston
• Maintain an adequate ratio (~1/3) between pipetting forces and purge forces to feel confident in results
• Maintain quality and robustness of our pipetting system.
| Single channel / Multichannel models | ||||||||||
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | |||||||
| Systematic error | Random error | Systematic error | Random error | |||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | |||
| MSP-2 | 0.2 2 |
±0.026 ±0.033 |
±13.2% ±1.7% |
≤0.013 ≤0.015 |
≤6.6% ≤0.8% |
±0.080 ±0.080 |
±40.0% ±4.0% |
≤0.040 ≤0.040 |
≤20.0% ≤2.0% |
|
| MSP-10 | 1 10 |
±0.028 ±0.110 |
±2.8% ±1.1% |
≤0.013 ≤0.044 |
≤1.3% ≤0.4% |
±0.120 ±0.120 |
±12.0% ±1.2% |
≤0.080 ≤0.080 |
≤8.0% ≤0.8% |
|
| MSP-20 | 2 20 |
±0.11 ±0.20 |
±5.5% ±1.0% |
≤0.033 ≤0.066 |
≤1.7% ≤0.3% |
±0.20 ±0.20 |
±10.0% ±1.0% |
≤0.100 ≤0.100 |
≤5.0% ≤0.5% |
|
| MSP-100 | 10 100 |
±0.39 ±0.80 |
±3.9% ±0.8% |
≤0.11 ≤0.17 |
≤1.1% ≤0.2% |
±0.80 ±0.80 |
±8.0% ±0.8% |
≤0.030 ≤0.030 |
≤3.0% ≤0.3% |
|
| MSP-200 | 20 200 |
±0.55 ±1.60 |
±2.8% ±0.8% |
≤0.22 ≤0.33 |
≤1.1% ≤0.2% |
±1.60 ±1.60 |
±8.0% ±0.8% |
≤0.60 ≤0.60 |
≤3.0% ≤0.3% |
|
| MSP-1000 | 100 1000 |
±3.3 ±0.8 |
±3.3% ±8.0% |
≤0.7 ≤1.7 |
≤0.7% ≤0.2% |
±8.0 ±8.0 |
±8.0% ±0.8% |
≤3.0 ≤3.0 |
≤3.0% ≤0.3% |
|
| MSP-5000 | 500 5000 |
±13 ±33 |
±2.6% ±0.7% |
≤3.3 ≤8.8 |
≤0.7% ≤0.2% |
±40 ±40 |
±8.0% ±0.8% |
≤15 ≤15 |
≤3.0% ≤0.3% |
|
| MSP-10000 | 1000 10000 |
±33 ±60 |
±3.3% ±0.6% |
≤6.6 ≤17.6 |
≤0.7% ≤0.2% |
±60 ±60 |
±6.0% ±0.6% |
≤30 ≤30 |
≤3.0% ≤0.3% |
|
| MSP-8X10 | 0.5 | ±0.09 | ±17.6% | ≤0.04 | ≤8.8% | ±0.24 | ±48.0% | ≤0.16 | ≤32.0% | |
| MSP-8X20 | 2 | ±0.11 | ±5.5% | ≤0.09 | ≤4.4% | ±0.40 | ±20.0% | ≤0.20 | ≤10.0% | |
| MSP-8X200 | 20 | ±0.6 | ±2.8% | ≤0.28 | ≤1.4% | ±3.2 | ±16.0% | ≤1.20 | ≤6.0% | |
| MSP-8X300 | 20 | ±1.1 | ±3.7% | ≤0.39 | ≤1.3% | ±8.0 | ±26.7% | ≤3.00 | ≤10.0% | |
| MSP-12X10 | 10 | ±0.22 | ±2.2% | ≤0.11 | ≤1.1% | ±0.24 | ±2.4% | ≤0.16 | ≤1.6% | |
| MSP-12X20 | 20 | ±0.40 | ±2.0% | ≤0.17 | ≤0.8% | ±0.40 | ±2.0% | ≤0.20 | ≤1.0% | |
| MSP-12X200 | 200 | ±2.2 | ±1.1% | ≤0.55 | ≤0.3% | ±3.2 | ±1.6% | ≤1.20 | ≤0.6% | |
| MSP-12X300 | 300 | ±3.3 | ±1.1% | ≤1.10 | ≤0.4% | ±8.0 | ±2.7% | ≤3.00 | ≤1.0% | |
Brochure-019-Pipette Click Here
Flyer_Pipette_6pages Click Here
Flyer_Pipette_A4 Click Here
