INNUPURE C16 TOUCH
InnuPure® C16 touch - The New Standard in Automated Extraction
- Universally applicable thanks to a wide range of extraction kits for isolating DNA and RNA
- Nucleic acid adsorption onto magnetic or paramagnetic particles
- Combined magnetic/heating unit offers flexible support for the automated process and collects the bound nucleic acids effectively
- Extraction based on patented, lowsalt DC-Technology®
- Prefilled reagent strips and/or plates for processing between 1 and 16 samples in parallel
- Sealed reagent cartridges simplify and speed up the process
- Manual work is limited to loading the sample tray
- Highly precise pipetting; guaranteed pipette tip seal
- Desired elution volume can be automatically set between 20 and
500 μl - Final step: Isolated nucleic acids transferred to storage tubes with lids
- 1 ml pipette tips with integrated aerosol filter provide reliable protection for the dispensing unit
- Reagent cartridges do not need to be opened manually: instrument pierces seals
- Optional UV lamp provides a simple means of decontaminating the sample chamber
- Stand-alone operation with integrated
10” Tablet - Wizard feature guides beginners through the menu; experienced
users have quick, direct access to preinstalled extraction protocols - Barcode-marked extraction kits contain all relevant information
| Technical Data | |
| Extraction | |
| Basis | Magnetic or paramagnetic particles |
| Duration of extraction | Externe Lysis: < 45 min (ohne Lyse) Interne Lyse: < 75 min (inkl. Lyse) |
| Ø Yield | Depending on type and amount of sample Tissue (20 mg): up to 50 μg Whole blood samples (200 μl): up to 10 μg Plant (100 mg): up to 60 μg |
| Elution volume | 20 μl up to 500 μl (in steps of 10 μl) |
| Field of application | DNA and RNA extraction |
| Sample parameters | |
| Number of samples | Up to 16 samples in parallel, incl. single sample preparation |
| Sample amount | Depending on the type of sample Up to 10 ml or 180 mg respectively |
| Tempering | Up to 70 °C inside the sample Support of lysis, drying and elution |
| Control | |
| Control | Stand-alone control |
| Display | 10“ tablet PC, color, touch, WIN 8.1 |
| Features | Sample-based wizard Automatic pipetting of chosen elution volume Automatic transfer of eluates into storage tubes with lid Pre-installed extraction and decontamination protocols Video sequences and display of residual time for ideal overview of the run User management with 3 user levels |
| Liquid Handling | |
| Pipetting head / Channels | Dosing unit with 16 channels |
| Tips | 1 ml tip with aerosol filter |
| Working volume | Up to 1000 μl |
| Functions | Pipetting and piercing function of the sealed reagent plastic |
| Accessoires | |
| Cleaning / Decontamination | Big front door for easy access and wipe decontamination of the sample room Optional: UV lamp for decontamination between two runs by 254 nm UV light |
| Kits and Reagents | Ready-to-use kits for DNA and RNA extraction |
| Additional | Priming Station and Sample Tray |
| Additional technical data | |
| Interface | Tablet: USB for data transfer, barcode reader |
| Noise emission | Max. 55 dB |
| Warranty | 2 warranty on device system incl. tablet PC |
| Dimensions | |
| Weight | Approx. 30 kg |
| Dimension (W x H x L) | 400 mm x 543 mm x 550 mm |
| Order number | Description |

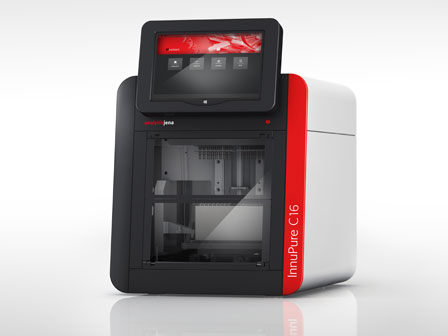

| 845-00020-2 | InnuPure® C16 touch Instrument system stand-alone, incl. 10” Tablet PC, Priming Station and Sample Tray |
| 845-60025-0 | Priming station for InnuPure® C16 touch Priming Station for InnuPure® C16 touch and the usage of up to 2 Sample Trays for the easy preparation with all necessary kit components needed for automated extraction. |
| 845-60026-0 | Sample Tray for InnuPure® C16 touch Sample Tray for InnuPure® C16 touch and the usage of up to 2 Reagent Plates and the preparation of up to 16 samples in parallel. For single sample handling adapters for usage of up to 4 Reagent Strips are available (optional). |
| 845-60006-0 | Adapter for 4 Reagent Strips Adapter for the Sample Tray of InnuPure® C16 touch and usage of up to 4 Reagent Strips for single sample handling; one Sample Tray can be used with up to 2 adapters. |
