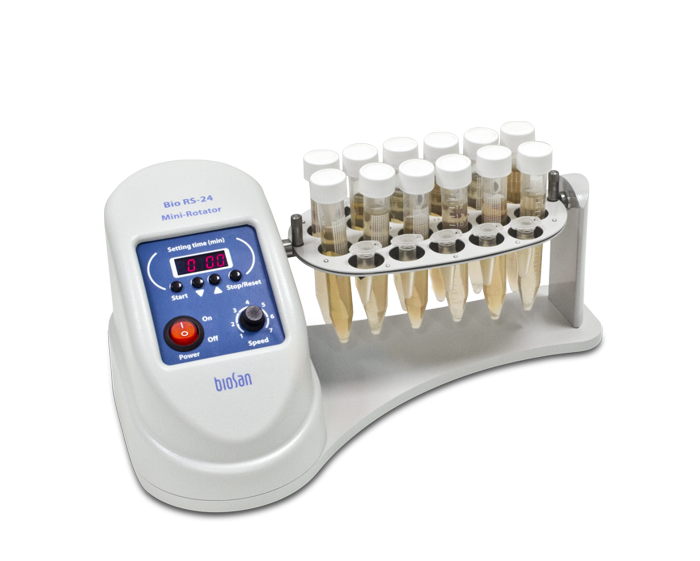

MINI-ROTATOR

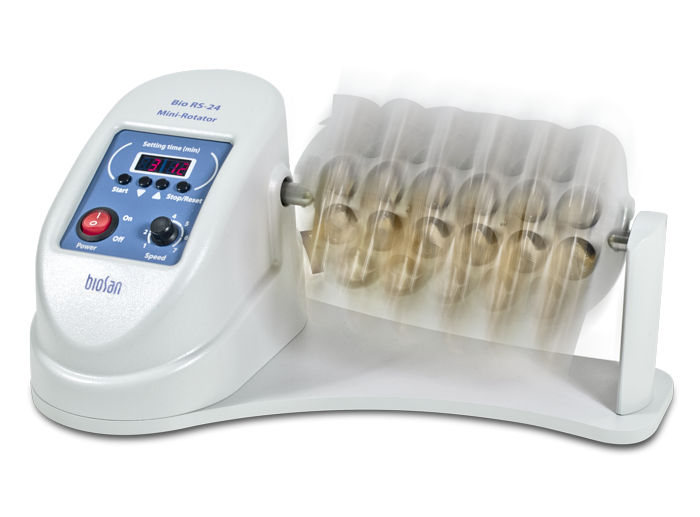

Mini-rotator Bio RS-24 provides vertical rotation of the platform. The rotator is an ideal instrument for preventing blood coagulation in tubes and for fulfilment of procedures of biological components extraction.
The device is simple to operate; it is designed as a low cost solution.
Rotator can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.
PRS - series platforms are equipped with universal rubber clamps for different size tube fixation;
PRSC - series platforms have metal clamps able to hold heavier solutions (e.g. soil, sand)
| Speed control range | 5-30 RPM |
| Vertical rotation movement | overhead, 360° |
| Digital time setting | 1 min–24 hrs / non–stop |
| Maximum continuous operation time | 8 hrs |
| Overall dimensions (W×D×H) | 325×190×155 mm |
| Weight | 1.4 kg |
| Input current/power consumption | 12 V, 110 mA/1.3 W |
| External power supply | Input AC 100–240 V 50/60 Hz; Output DC 12 V |
| BS-010117-EK | Platform PRSC-18 |
| BS-010117-AK | Platform PRS-4/12 |
| ---------------- | |
| BS-010133-BK | IQ OQ document |
| BS-010133-CK | PQ document |
| ---------------- | Replacement parts |
| BS-010117-FK | Platform PRS-22 |
PRS-22
can accommodate 22 tubes, 10-16 mm diameter (1.5 ml - 15 ml tubes)
PRS-4/12
can accommodate 4 tubes, 20-30 mm diameter (up to 50ml tubes) and 12 tubes, 10-16 mm diameter (1.5 ml - 15 ml tubes)
PRSC-18
can accommodate 18 tubes, 16 mm diameter (15 ml)
BioRS-24 - User manual Click Here
Bio RS-24, Mini-rotator Click Here
DoC certificate - rockers, shakers, rotators, vortexes Click Here
