Mini Rocker–Shaker MR-1 provides regulated gentle rocking motion of the platform and is ideal for mini gel destaining after electrophoresis, conducting Northern, Southern and Western blot analysis.
Shaker is a compact, noiseless device designed for personal use. The use of direct drive and brushless motor allows continuous mixing up to 7 days and ensures reliable, trouble-free operation for more than 2 years.

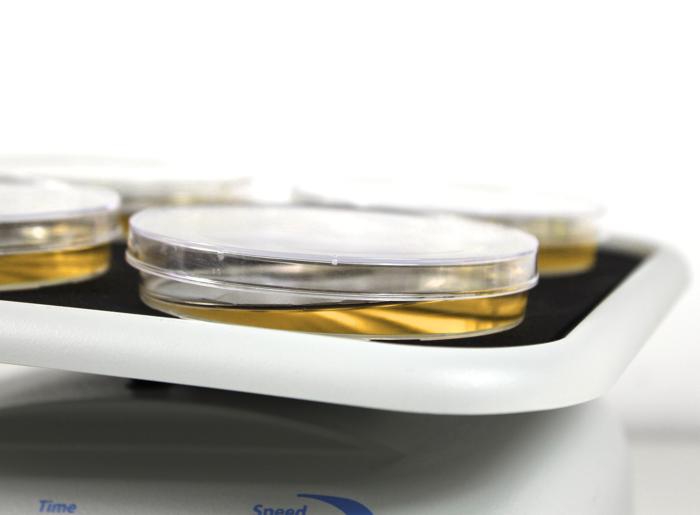

Non–slip, temperature resistant, silicone mat located on the rocker’s platform provides stable position for vessels during shaking. Optional dimpled PDM mat fixes tubes of different sizes.
Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C

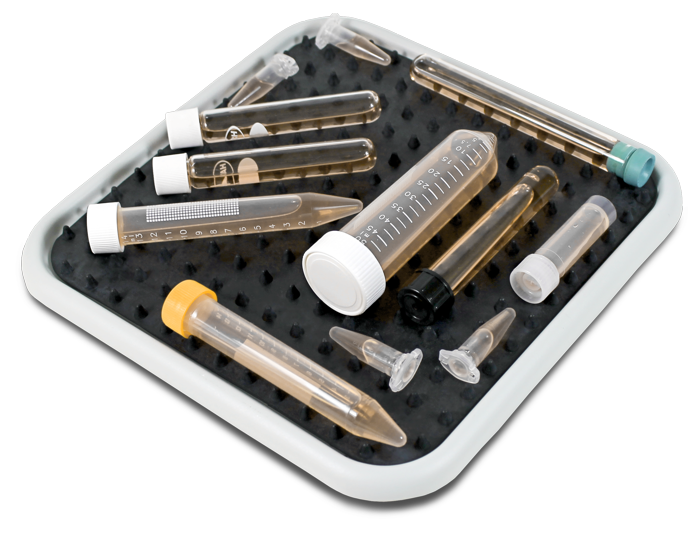

Optional dimpled mat PDM prevents different size tubes from rolling around the platform.
|Mixing frequency range||5–30 oscil/min|
|Fixed tilt angle||7°|
|Maximum continuous operation time||168 h|
|Direct drive mechanism||+|
|Digital time setting||1 min-24 hrs / non-stop|
|Non-slip silicone mat is supplied as standard||+|
|Maximum load||1 kg|
|Platform working area||215x215 mm|
|Overall dimensions (W×D×H)||220x205x120 mm|
|Input current/power consumption||12 V, 320 mA / 3.8 W|
|External power supply||Input AC 100–240 V; 50/60 Hz; Output DC 12 V|
|PDM||PDM, dimpled mat|
|BS-010107-BK||IQ OQ document|
|BS-010125-AK||Bio PP-4S, detachable platform with non-slip thermoresistant silicone mat|
