TRANSPARENT MINI HORIZONTAL ELECTROPHORESIS SYSTEM

TRANSPARENT MINI HORIZONTAL ELECTROPHORESIS SYSTEM

Cat. No. : 1MJC-MJ-105A
Brand : : Major Science

ADD TO WISH LIST

MJ-105A horizontal electrophoresis system offers many advantages for nucleic acid separation. Agarose gels are convenient to cast and samples are easy to load with this recognizable mini horizontal cell. Its molded design prevents cracks and leakages and the sturdy PC provides a 130°C temperature capacity. The safety interlock cover is designed to prevent electrical hazards during electrophoresis. It is ideal for several applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.

Less agarose consumption
Less running buffer consumption
Multichannel pipette-compatible
Single molded tank
Safety & Ventilation lid
High-temperature capability, 130°C
Easy sample loading
Great indications for gel making and running
No tapes, clamps or springs needed for gel casting
No direct heat impact from power supply unit
Transparent tank and lid
Real-time observation with MBE-300
Contains 2 sets of gel maker stand
Cast 6 pcs of agarose gel in one time

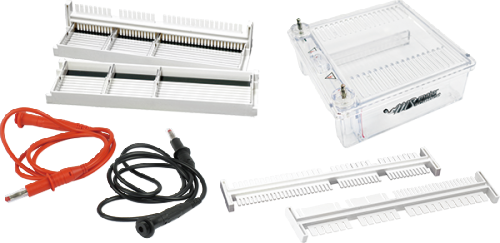

MJ-105A is offered as a complete system for the user to cast, and run electrophoresis. including:

1 x Transparent tank and transparent lid
2 x MJ-G01 (Gel Maker Stand)
2 x MJ-T02 (107x60mm Tray)
4 x MJ-T01 (52x60mm Tray)
1 x MJ-C01 (Double side comb: 8 teeth x 2 & 17 teeth; 12 teeth x 2 & 25 teeth)
1 x MT-C03 (Multiple pipette compatible 23 teeth, Prep 1 & Marker 2, Prep 2 & Marker 2; 6 teeth x 2 for mini gel & 12 teeth for midi gel)
1 x Black & red electrophoresis cable

คลิกที่นี่ เพื่อดูรายละเอียดสินค้าเพิ่มเติม

Specification

Cat. No	MJ-105A
Appearance	Transparent tank & transparent lid
Material	PC (Polycarbonate)
Lid Material	PC (Polycarbonate)
Temperature Capacity	130°C
Transparent Lid	Safety ventilation design
Gel Dimension (WxL)	4.2"x2.4" (107x60mm)
Gel Dimension (WxL)	2.1"x2.4" (52x60mm)
Tray	Black well-visualization strip
	Migration distance index line
	Agarose level, 0.2" (5mm)
Rapid Casting Gel	Use gel maker stand
Maximum Gel Thickness	0.39" (10mm)
Maximum Sample	25 samples
Buffer Volume	0.05gal (200ml)
Operating Temperature	4 - 40°C
Dimension (WxLxH)	5.8"x5.7"x2.3" (148.3x145.8x59.1mm)
Weight	Approx. 1.1lb (0.5kg)

Cat. No.	Description
MJ-B01-A	Transparent tank and lid, without accessories
MJ-LID-AM580	580nm amber filter lid with fan, suitable for MJ-105A
MBE-LID-AM580	An inclined 580nm amber filter, suitable for MBE-200 and MBE-300
MJ-G01	Gel maker stand
MJ-T01	2.05"x2.36" (52x60mm) Tray
MJ-T02	4.21"x2.36" (107x60mm) Tray
MJ-T02	Analytical comb
MJ-C01	8 teeth x 2 for mini gel & 17 teeth for midi gel (thickness: 1.0mm), 12 teeth x 2 for mini gel & 25 teeth for midi gel (thickness: 1.5mm)
MT-C03	Analytical comb 1.0mm-thick (multiple pipetee compatible 23 teeth, Prep 1 & Maker 2, Prep 2 & Maker 2 on one side; 6 teeth x 2 for mini gel & 12 teeth for midi gel on the other side)
MBE-150-CABLE	Threaded Black and Red Electrophoresis Cable
MJ-CASTER-C	2 x MJ-G01; 4 x MJ-T01; 2 x MJ-T02; 1 x MJ-C01 and 1 x MT-C03
MBE-HOOD	Synthetic paper hood
