Biological Safety Cabinet, Class III, 1100mm.

Category

Close
    1. BSC Class III
    2. BSC Class II B2
    3. BSC Class II A2


2ATJ-BSC-1000III

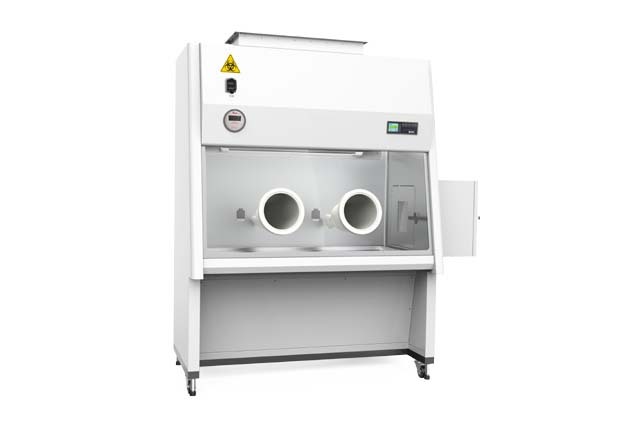

Biological Safety Cabinet, Class III, 1100mm.


Cat. No. : 2ATJ-BSC-1000III
Brand : : Airtech




Control Panel

◆ Colorful LCD screen, soft key button.

◆ Show negative-pressure of working area in real-time with alarm function.

◆ Show HEPA filter life in real-time with warning & alarm function.

◆ Show Fan state in real-time with alarm function.

◆ with timer function.



Humanized Design

◆ 10° sloped front, nice shape, relieving the sense of repression.

◆ Fully closed stronger safety front window, equip with isolated glove for safety operation, having a widely vison.

◆ High-grade stainless steel unibody workspace structure, easy clean and sterilization.

◆ Pass box equip with sterilization function, ensure safety transmit.

◆ Light and UV light can be delay and make appointment.



Safe and Reliable

◆ Negative-pressure in workspace, air exhaust 100% through two-stage HEPA filter, ensuring safety of operator and environment.

◆ Air supply through two-stage filtration, come into being vertical clean air flow.

◆ Main working area protected by negative pressure airflow system and air curtain, controlling the diffusion of lab pollution effectively.

◆ Air exhaust is controlled by two-stage fan which are interlocked, this make air exhaust stable and reliable.

◆ Light and UV light are interlocked.

◆ Different pressure gauge, show pressure in real-time and with alarm function.

Model/Item BSC-1000Ⅲ BSC-1300Ⅲ
Nominal Size 1meter(3') 1.3meter(4')
Filtration Efficiency HEPA: ≥99.995% (@0.3μm) / ULPA: ≥99.9995% (@0.12μm)
Negative Pressure ≥120 Pa
Processing Flow ≥0.05 m3/s
Noise ≤65 dB(A)
Power Supply AC220~240V，1φ，50Hz
Max Consumtion
(with Spare Socket)		 2.1 kVA 2.3 kVA
Rated Power
(with spare socket)		 1.0 kVA 1.2 kVA
Weight 350 kg 420 kg
Work Dimension
(W1XD1XH1)		 1000*600*690 mm
(39.4''x23.6''x27.2'')		 1300*600*690 mm
(51.2''x23.6''x27.2'')
Overall Dimension
(WXDXH)		 1470*790*2100 mm
(27.9''x31.1''x82.7'')		 1770*790*2100 mm
(69.7''x31.1''x82.7'')
Qty. of Gloves 2 pcs 2 pcs
Size&Qty. of Light LED 24.5 w x ① LED 31 w x ①
Size&Qty. of UV Light 18 w x ①; 8 w x ① 30 w x ①; 8 w x ①
Illumination (Lx) ≥650 Lx
Cabinet Materials High-grade steel and lacquered in ivory
Working Area Materials SS304 fully finished
Air Direction Top out
Plug Style Chinese Type(AC 250V/10A)
Qty. of Spare Socket Chinese Type(AC 250V/3A) 2 units
