SE-Z Heating Immersion Circulator
SE-Z Bridge Mounted Circulator
Sophisticated models for demanding applications

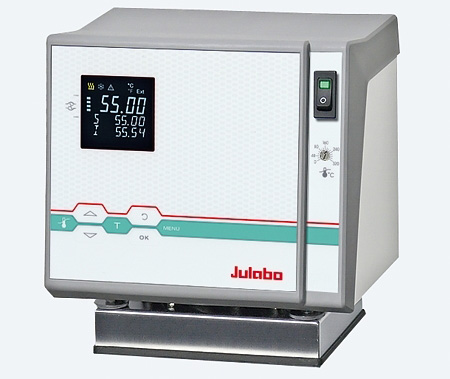

Bridge mounted circulator with extendable bridge for any bath tank up to 100 liters
JULABO bridge mounted circulator with extendable bridge made of stainless steel for any bath tanks. For internal and external temperature applications. The model offers high pump and heating capacities for temperature control of large baths up to 100 liters. Including a built-in cooling coil for counter-cooling with tap water.
Your advantages
- VFD COMFORT DISPLAY
- Keypad for setpoints, warning/safety values and menu functions
- ICC (Intelligent Cascade Control), self-optimizing temperature control
- ATC3 3-Point-Calibration

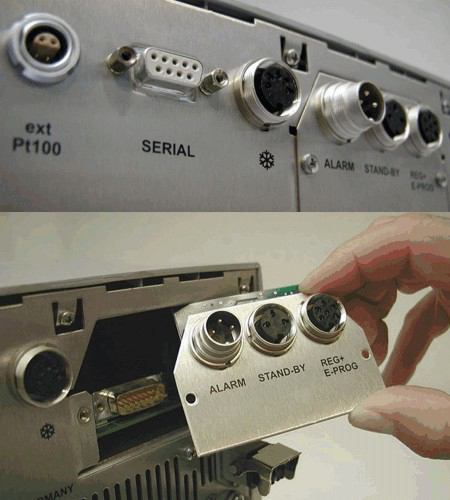

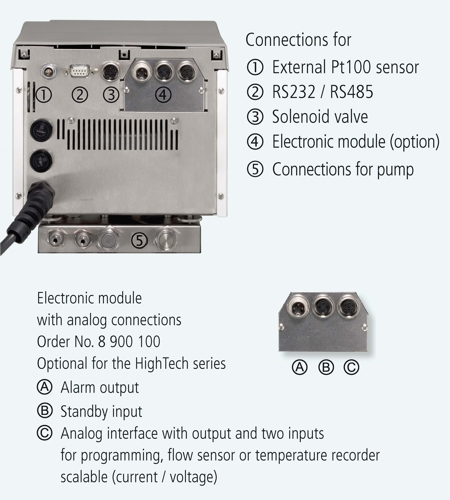

- Pt100 External sensor connection for measurement and control
- SMART PUMP, electronically adjustable pump stages
- Early warning system for low liquid level (DBGM 203 06 059.8)
- Adjustable high temperature cut-out, visible via display
- RS232 interface for online communication
- Integrated programmer for 10 program steps
- Expandable bridge from 31 to 66 cm
- Built-in cooling coil
Technical Data
| Order No. | 9252218 |
|---|---|
| Model series | HighTech |
| Category | Bridge Mounted Circulators |
| Working temperature range (°C) | +20 ... +300 |
| Temperature stability (°C) | ±0.01 |
| Setting / display resolution | 0.01 °C |
| Integrated programmer | 1x10 steps |
| Temperature Display | VFD |
| Heating capacity (kW) | 3 |
| Pump capacity flow rate (l/min) | 22-26 |
| Pump capacity flow pressure (bar) | 0.4-0.7 |
| Pump capacity flow suction (bar) | 0.2-0.4 |
| Pump connections | M16x1 |
| Barbed fittings diameter (inner dia. / mm) | 8 / 12 |
| External Pt100 sensor connection | integrated |
| Digital interfaces | RS232 Optional Profibus |
| Ambient temperature | 5...40 °C |
| Dimensions W x L x H (cm) | 32 x 17 x 40 |
| Weight (kg) | 8 |
| Classification according to DIN12876-1 | Classification III (FL) |
| Description | A cooling coil is integrated for working below or near the ambient temperature. |
| Included with each unit | 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 female). |
| Cooling coil | integrated |
| Usable immersion depth (cm) | 12 - 19 |
