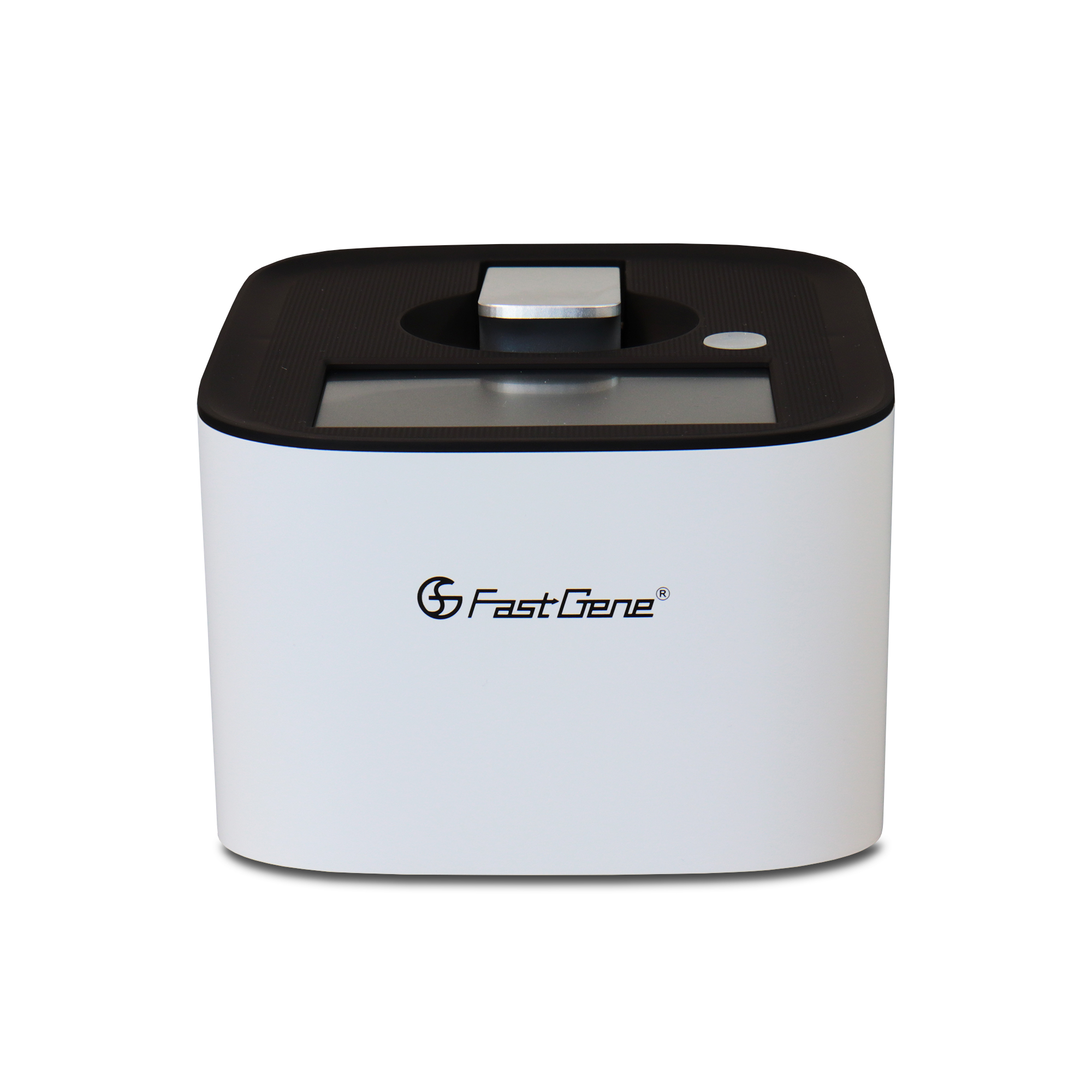

FASTGENE NANOVIEW PHOTOMETER
FastGene NanoView Photometer
Microvolume Photometer
- Best device performance: Microvolume drop and cuvette reader
- Specialist: quantification of nucleic acids (dsDNA, ssDNA, RNA), proteins (BSA, IgG) and OD600
- Cost-saving: stand-alone device with integrated control unit
- Convenient utility: simple and intuitive menu
- Highest reliability: 10 pre-configurated measuring modes ensure secure utilization
|
Specification |
FastGene® NanoView Photometer |
|
General specifications |
|
|
Photometric system |
Microvolume spectrophotometer |
|
Sample number |
1 |
|
Minimal sample volume |
2 µL |
|
Footprint (W x D) |
145 mm x 190 mm |
|
Weight |
1.4 kg |
|
Optical specifications |
|
|
Detector |
Silicon photodiode |
|
Light source |
LEDs |
|
Measurement wavelength |
260 nm, 280 nm / 600 nm (cuvette) |
|
Baseline correction wavelength |
360 nm |
|
Measurement time |
< 10 seconds |
|
Pathlength |
0.1 – 0.5 mm (auto ranging) |
|
Spectral resolution |
≤ 8.0 nm |
|
Absorbance precision |
0.004 AU (0.5 mm path) |
|
Absorbance range |
0 – 40 A (10 mm equivalent) |
|
Detection limit |
4 ng/µL (dsDNA), 3 ng/µL (RNA), 0.12 mg/mL (BSA), 0.06 mg/mL (IgG) |
|
Maximum concentration |
2,000 ng/µL (dsDNA), 1,600 ng/µL (RNA), 60 mg/mL (BSA), 28.8 mg/mL (IgG) |
|
Photometric range |
0 – 2 A |
|
Cuvette center hight |
15 mm |
|
Processing / Power |
|
|
Operating voltage |
12 V (DC) |
|
Power consumption |
Operating – 4.7~5.2 W, Standby – 3.3 W |
|
Connectivity |
USB-A, USB-B, RS232C |
|
Internal storage |
4 GB |
|
Display |
|
|
Display resolution |
4.3-inch, 480 x 272 pixels (color display) |
|
Touchscreen |
Resistive touch |
|
Glove compatible |
Compatible with lab gloves |
