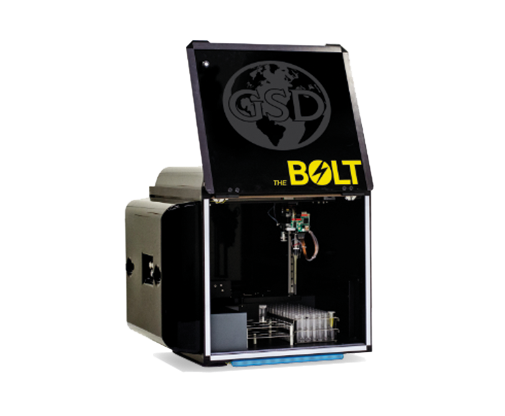

THE BOLT ELISA ANALYZER
The BOLTTM, a one-plate ELISA+CLIA processor, shares many features of the ThunderBolt®, with a more customizable, lower throughput and cost-effective design. The interactive user-friendly software provides a simple laboratory experience for instrument operation. The BoltTM is manufactured by Gold Standard Diagnostics.
ELISA assays validated on The BoltTM, from the following product lines:
- SENSISpec Allergen ELISA Kits
- BACSpec Pathogen ELISA Kits
- Environment & Water ELISA Kits
- Celer Mycotoxin ELISA Kits
- BZERO Mycotoxin ELISA Kits
- I’screen AFLA M1, I’screen AFLA M1 milk AOAC approved Mycotoxin ELISA Kits
- Veterinary Drug Residues ELISA kits
| SKU | 00500 (ELISA); 00500-CL (ELISA+CLIA) |
|---|---|
| Sample Capacity | Up to 96 samples |
| System Architecture | Open, fully customizable |
| Reagent Positions | 9 custom reagent positions (22-35 mm diameter bottles accepted) |
| Incubation temperature | Room temperature to 40°C |
| Spectrophotometer | 405, 450, 490, 550 and 630 nm wavelengths standard (custom available), 0 to 3.0 OD |
| Chemiluminescence Photomultiplier Tube (PMT) | Detection type: glow Spectral range: 300-500 nm Dark count: 50 counts per second (standard) Measuring time: 200 ms (adjustable 1 to 1000 ms) Dynamic range: 6 decades (*optional configuration) |
| Power Supply | 100-265V |
| Dimensions | W: 48.3 cm, D: 53.3 cm, H: 55.8 cm (fits on a 60 cm deep standard laboratory bench) |
