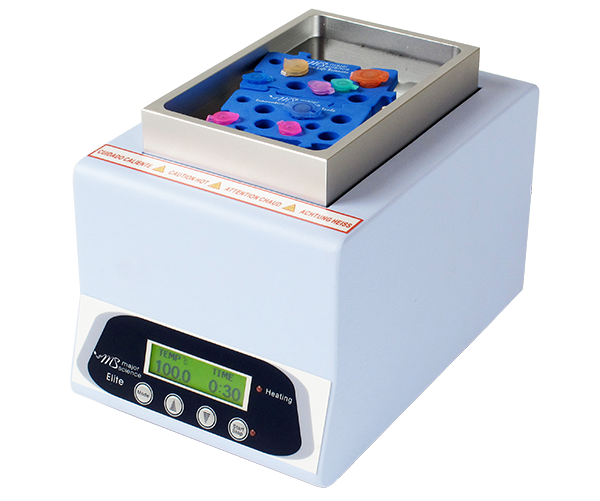

ELITE DRY BATH INCUBATOR, SINGLE UNIT

ELITE DRY BATH INCUBATOR, SINGLE UNIT


Cat. No. : 1MJC-EL-01-220
Brand : : Major Science

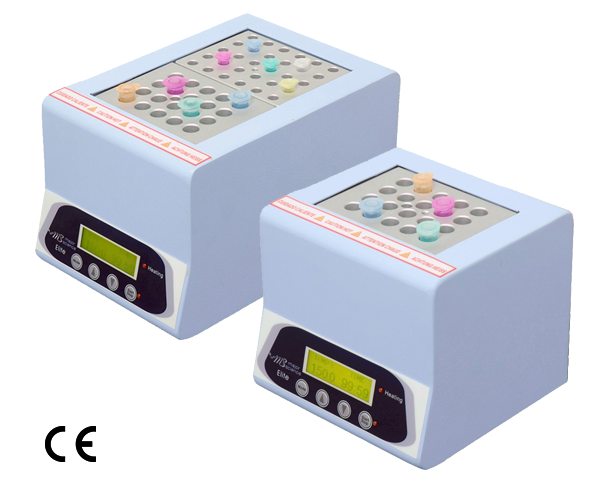

 The Elite Dry Bath Incubator comes in single or dual block modes along with a comprehensive set of interchangeable blocks. It is designed for a variety of applications, including restriction digest, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and hot start thermo-cycled reaction. Elite Dry Bath is recognized as the finest, fastest heating and smallest foot print dry bath incubator. In addition, the aluminum blocks can be removed for the use of a mini water bath or a bead bath. The temperature setpoint can be set in increments of 0.1°C from 5°C above ambient to 150°C. Optional PC control software allows the dry bath incubator to perform real time data recording through a PC.

 Digital microprocessor controller confers performance and precise control

 Broad temperature control range & guaranteed uniformity

 Excellent heating rate

 Large LCD screen for instant observation

 User temperature calibration

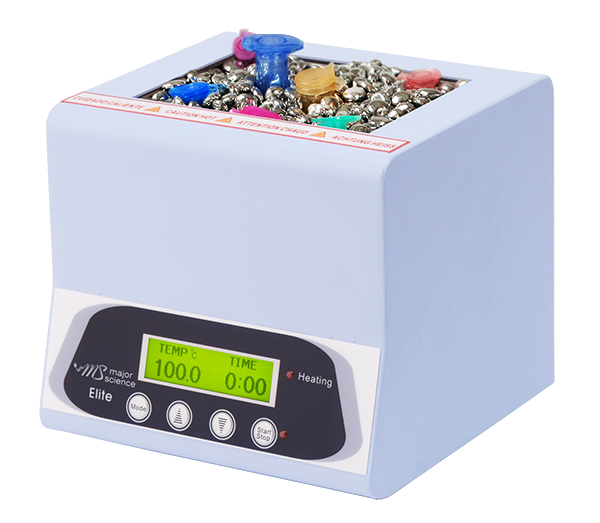

 Can be used as a water bath or bead bath

 Molded aluminum alloy chamber

 Optional PC Control software available



proimages/4-Thermoblock_Reactor/Features/EL_info01.png

 Cat. No.

EL-01 (Single Block)

EL-02 (Dual Block)

Display

LCD

Power

125W

200W

Dimension (WxLxH)

5.98"x5.91"x5.31"

(152x150x135mm)

5.98"x9.06"x5.31"

(152x230x135mm)

Controller

Digital microprocess controller

Heating chamber

Molded Waterproof aluminum alloy coated with PTFE

Temperature control range

5°C above ambient to 150°C

Temperature increment

0.1°C

Temperature uniformity at 37°C

± 0.2°C

Temperature accuracy at 37°C

± 0.2°C

Temperature calibration

Yes

Timer

99 (hr): 59 (min) / Continuous

Safety

Leak proof heating chamber

Over temperature protection

SSR failure detection

Operating temperature

Ambient to 40°C

Special feature

Used as water bath or bead bath incubator

Block material

Aluminum alloy

Block type

Standard and customized type are available

PC Connection

RS232

Rated voltage

110V / 220V

Weight

Approx. 4.6lb (2.1kg)

Approx. 6.1lb (2.8kg)

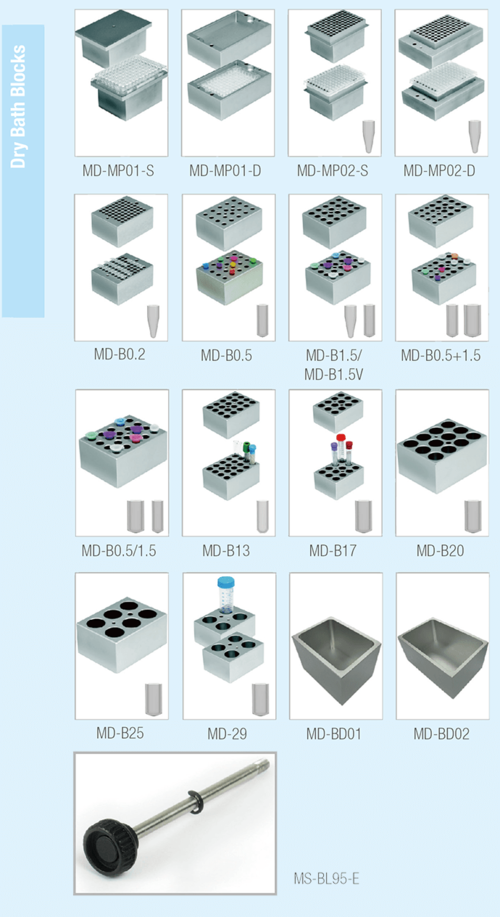

Blocks



Block material

Aluminum alloy

Dimension

(WxLxH) 3.11"x4.09"x1.97" (79x104x50mm)

Block lifter well

Yes

Thermometer well

Yes (except microplate blocks)





Cat. No.

Product Description

MD-RS232

RS 232 cable

MD-PCSW

Function control software package

MD-PCSW-R

Function control software package; including a RS232 cable





MD-MP01-S

For microplate; titerplate (Plain Block for Single Block unit only)

MD-MP01-D

For microplate; titerplate (Dual Block unit only)

MD-MP02-S

For 96 wells deep microplate or PCR plate ( for Single Block unit only)

MD-MP02-D

For 96 wells deep microplate or PCR plate ( for Dual Block unit only)

MD-B0.2

For 0.2ml tube, 64 wells (or 0.2ml PCR strip tube for 8 wells x 8)

MD-B0.5

For 0.5ml tube, 20 wells

MD-B1.5

For 1.5ml tube, 20 wells

MD-B0.5+1.5

Combination: for 0.5ml tube, 12 wells; and for 1.5ml tube, 12 wells (on the same side)

MD-B0.5/1.5

One side for 1.5 or 2.0ml tube, 20 wells and another side for 0.5ml tube, 30 wells (on the  opposite side)

MD-B13

Well size 13mm, 20 wells

MD-B17

For 15ml centrifuge tube, 12 wells

MD-B20

Well size 20mm, 12 wells

MD-B25

Well size 25mm, 6 wells

MD-B29

For 50ml centrifuge tube, 4 wells
