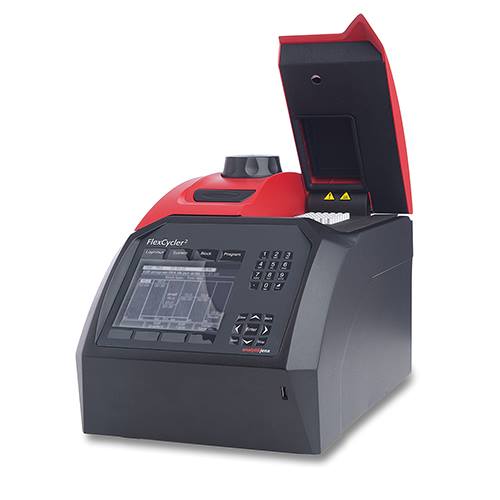

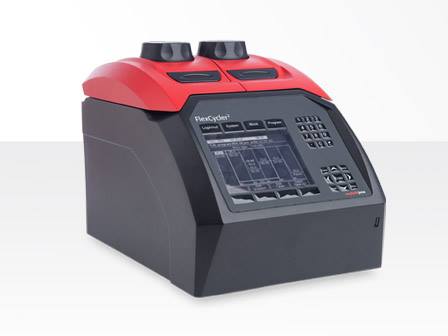

FLEXCYCLER 96G STANDARD PCR-THERMOCYCLER

Cat. No. : 1AJ-844-00061-2
Brand : : Analytik Jena

ADD TO WISH LIST

Quick-X-Change block exchange system
Automatic block recognition
96 well and 48 well twin-block optionally with
gradient function
Twin-blocks independently controllable
Multiblock start- and stop-function
Large ¼ VGA display
High Performance Smart Lid (HPSL) for always
optimal contact pressure
USB A and USB B port
Comfortable user administration
GLP compliant documentation of PCR runs
Comprehensive additional software functions

Order number	844-00062-x	844-00060-x	844-00064-x	844-0065-x
	844-00063-x	844-00061-x
	FlexCycler2 twin 48	FlexCycler2 96	FlexCycler2 twin 30	FlexCycler2 twin combi
	FlexCycler2 twin 48G	FlexCycler2 96G
Capacity	2 x 48 x 0.2 ml tubes,	96 x 0.2 ml tubes,	2 x 30 x 0.5 ml tubes	2 x 48 x 0.2 ml tubes,
	2 x 6 x strips of 8,	6 x strips of 8,		2 x 6 x strips of 8,
	2 ml or 2 x 48 well	0.2 ml or 96 well		0.2 ml or 2 x 48 well
	microplates	microplates		microplates,
				2 x 18 x 0.5 ml tubes
Block material	Aluminum	Aluminum	Aluminum	Aluminum
Block surface coating	Silver-coloured anodised	Silver-coloured anodised	Silver-coloured anodised	Silver-coloured anodised
Block exchange	Quick-X-change	Quick-X-change	Quick-X-change	Quick-X-change
Time block exchange	Less than 10 s	Less than 10 s	Less than 10 s	Less than 10 s
Maximum heating rate*	4.5 °C/s	4.0 °C/s	4.0 °C/s	3.0 °C/s
Maximum cooling rate*	4.5 °C/s	4.0 °C/s	4.0 °C/s	3.0 °C/s
Average heating rate*	4.5 °C/s	3.0 °C/s	3.3 °C/s	2.4 °C/s
Average cooling rate*	4.5 °C/s	3.0 °C/s	3.3 °C/s	2.4 °C/s
Gradient**	20°C	30°C	-	-
Temperature uniformity	< ± 0.4 °C at 70 °C after 15 s
Temperature uniformity	3 °C to 99 °C
Temperature range**	20 °C to 99 °C
Control accuracy	± 0.1 °C
Software	Quick start of the 5 latest programs, program preview, toggle between easy spreadsheet and graphical
	programming mode, graphical display of gradients, multiblock start- and stop-function, variable heating and
	cooling rates, extended self test, service info files for remote diagnosis, versatile USB-functions like
	storage of programs, run-logfiles or SINF-files
Programming modes	Spreadsheet or graphical
Program memory	350 programs in 30 user directories, optionally PIN-code protected
Display	¼ VGA screen, 320 x 240 pixel
Autorestart function	Yes
Smart Lid technology	Yes
Lid temperature range	30 to 99 °C
Max. power consumption	600 Watt
Operation voltage	100, 115, 230 Volt, 50-60 Hz
