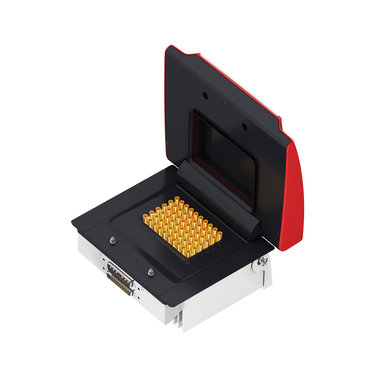

Biometra TAdvance e 96G, 230V
Biometra TAdvanced – the high-performance thermal cycler for DNA amplification by PCR
- Twelve different sample blocks: including a 96-well silver block as high-end variant
- Powerful control electronics: Now even an aluminum block reaches superior heating and cooling rates as usually only achieved in instruments with silver block
- Fastest Ramping, Highest Accuracy and Intelligent Block/Well Control (RAC): high temperature uniformity and maximum reproducibility, no over- or undershooting of the programmed target temperature
- Optional with gradient: simple optimization of new primer pairs
- Linear Gradient Tool (LGT): specific adjustment of the gradient temperature profile
- High Performance Smart Lid Technology (HPSL): fast heating, constant contact pressure and easy use

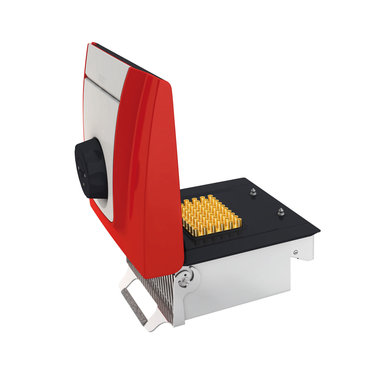

- Quick Block Exchange System: easy, fast exchange of sample blocks
- Whisper Quiet Technology: particularly quiet operation with a maximum noise level of 45 dB
- Intuitive software: graphical programming and Easy Spreasheet Programming
- Multi Step Programming: easy creation of PCR protocols during programming without the need to toggle between different windows
- Advanced User Management (AUM): flexible user management with individual assignment of user rights for single users
- User Specific Quick Start: no tedious searching of already used PCR programs due to the combination of Quick Start and Program Preview
- Extended Self Test: automatic system diagnosis and documentation of PCR runs
- Comfortable 7 inch color touch display
- USB and Ethernet port
- Protocol Wizard: Automatic creation of PCR protocols with few inputs
| Technical Data | |||||
| Instrument | Biometra TAdvanced 96/96 G | Biometra TAdvanced 96 S/96 SG | |||
| Capacity | 96 x tubes 0.2 ml 96 well microplates 12 x strips 8 well |
96 x tubes 0.2 ml 96 well microplates |
|||
| Block | Aluminum | Silver | |||
| Block coating | Special Alloy | Gold | |||
| Block Exchange | Quick-X-Change | Quick-X-Change | |||
| Block Exchange time | less than 10s | less than 10s | |||
| Max. heating rate* | 6,0 °C/sec | 8.0 °C/sec. | |||
| Max. cooling rate* | 4,0 °C/sec | 5.5 °C/sec. | |||
| Avg. Heating Rate* | 5,5 °C/sec | 7.0 °C/sec. | |||
| Avg. Cooling Rate* | 3,5 °C/sec | 4.5 °C/sec. | |||
| Max./min. Gradient span1 | 30 °C/0.1 °C | 40 °C/0.1 °C | |||
| Temperature Uniformity | 95 °C ± 0.60 °C after 15 s 70 °C ± 0.30 °C after 15 s 55 °C ± 0.20 °C after 15 s |
95 °C ± 0.50 °C after 15 s 70 °C ± 0.25 °C after 15 s 55 °C ± 0.15 °C after 15 s |
|||
| Gradient Temperature Range1 | 20 °C to 99 °C | 4 °C to 99 °C | |||
| Temperature Range | 3 °C to 99 °C | ||||
| Control Accuracy | +/- 0.1 °C | ||||
| Software | User specific quick start of the last five programs, program preview prior to start, toggle between spreadsheet and graphical programming mode, Linear Gradient Tool1, generate service info files (SINF),extended self-test, adjustable ramp rates, view gradient temperature graph1, PC control via Ethernet, comprehensive user administration tool with individual rights settings, Protocol Wizard |
||||
| Display | 7‘‘ Color Touchscreen | ||||
| Auto restart after power failure | Yes | ||||
| High Performance Smart Lid (HPSL) Technology | Yes | ||||
| Lid Temperature Range | 30 °C to 110 °C | ||||
| Power consumption | 850 Watt | ||||
| Power Supply | 100, 115, 230 Volt, 50-60 Hz | ||||
| Noise emission | Very low, max. 45 dB | ||||
| Interfaces2 | USB A, Ethernet | ||||
| Working conditions | 15 °C to 35 °C, 70 % air humidity, max. 2000 m NN | ||||
| Dimensions (W x D x H) | 277 mm x 457 mm x 264 mm | ||||
| Dimensions (W x D x H) with lid opened | 277 mm x 457 mm x 414 mm | ||||
| Weight | 15 kg | ||||
| * measured inside the block 1 Only for model type “G” featuring gradient function 2 The network cable must be at least performance class Cat 5e and the cable configuration has to be STP |
|||||
| Instrument | Biometra TAdvanced 60/60 G | Biometra TAdvanced 384/384 G | |||
| Capacity | 60 tubes 0.5 ml |
384 well microplates | |||
| Block | Aluminum | Aluminum | |||
| Block coating | Special Alloy | Special Alloy | |||
| Block Exchange | Quick-X-Change | Quick-X-Change | |||
| Block Exchange time | less than 10s | less than 10s | |||
| Max. heating rate* | 6.0 °C/sec | 4.0 °C/sec | |||
| Max. cooling rate* | 4.0 °C/sec | 2.0 °C/sec | |||
| Avg. Heating Rate* | 5.5 °C/sec | 3.8 °C/sec | |||
| Avg. Cooling Rate* | 3.0 °C/sec | 1.7 °C/sec | |||
| Max./min. Gradient span1 | 30 °C | 24°C | |||
| Temperature Uniformity | 95 °C ± 0.60 °C after 15s 70 °C ± 0.30 °C after 15s 55 °C ± 0.20 °C after 15s |
95 °C ± 0.50 °C after 15s 70 °C ±0.25 °C after 15s 55 °C ± 0.15 °C after 15s |
|||
| Gradient Temperature Range1 | 20 °C to 99 °C | 20 °C to 99 °C | |||
| Temperature Range | 3 °C to 99 °C | ||||
| Control Accuracy | +/- 0.1 °C | ||||
| Software | User specific quick start of the last five programs, program preview prior to start, toggle between spreadsheet and graphical programming mode, Linear Gradient Tool1, generate service info files (SINF),extended self-test, adjustable ramp rates, view gradient temperature graph1, PC control via Ethernet, comprehensive user administration tool with individual rights settings, Protocol Wizard |
||||
| Display | 7‘‘ Color Touchscreen | ||||
| Auto restart after power failure | Yes | ||||
| High Performance Smart Lid (HPSL) Technology | Yes | ||||
| Lid Temperature Range | 30 °C to 110 °C | ||||
| Power consumption | 850 Watt | ||||
| Power Supply | 100, 115, 230 Volt, 50-60 Hz | ||||
| Noise emission | Very low, max. 45 dB | ||||
| Interfaces2 | USB A, Ethernet | ||||
| Working conditions | 15 °C to 35 °C, 70 % air humidity, max. 2000 m NN | ||||
| Dimensions (W x D x H) | 277 mm x 457 mm x 264 mm | ||||
| Dimensions (W x D x H) with lid opened | 277 mm x 457 mm x 414 mm | ||||
| Weight | 15 kg | ||||
| * measured inside the block 1 Only for model type “G” featuring gradient function 2 The network cable must be at least performance class Cat 5e and the cable configuration has to be STP |
|||||
| Instrument | Biometra TAdvanced Twin 48/48G |
Biometra TAdvanced Twin 30 |
Biometra TAdvanced Twin combi |
||
| Capacity | 2 x 48 x 0.2 ml tubes/ 2 x 48- well microtiter plate /2 x 6 x 8-well strips, 0.2 ml |
2 x 30 x 0.5 ml tubes | 2 x 48 x 0.2 ml tubes/ 2 x 6 x 8-well strips, 0.2 ml/2 x 48-well microtiter plate/ 2 x 18 x 0.5 ml tube |
||
| Block | Aluminum, special alloy |
Aluminum, special alloy |
Aluminum, special alloy |
||
| Max. heating rate1 | 5.2 °C/s | 4.2 °C/s | 3.1 °C/s | ||
| Max./min. gradient2 | 20 °C/0.1 °C in one block of the twin-block |
- | - | ||
| Gradient temperature range2 |
20 °C to 99 °C in one block of the twin-block |
||||
| Temperature uniformity at 55 °C after 15 s |
± 0.20 °C | ± 0.20 °C | ± 0.20 °C | ||
| Temperature range | 3 °C to 99 °C | 3 °C to 99 °C | 3 °C to 99 °C | ||
| Control accuracy | ± 0.1 °C | ± 0.1 °C | ± 0.1 °C | ||
| Lid temperature range |
30 °C to 110 °C | 30 °C to 110 °C | 30 °C to 110 °C | ||
| Program memory | 350 programs in up to 90 user directories | 350 programs in up to 90 user directories | 350 programs in up to 90 user directories | ||
| Dimensions (W x D x H, mm) |
277 x 457 x 264 | 277 x 457 x 264 | 277 x 457 x 264 | ||
| Instruments | ||
| Order number | Description | Capacity |
| 846-x-070-211 | Biometra TAdvanced 96 | 96 well 0.2 ml tubes, plates, strips |
| 846-x-070-201 | Biometra TAdvanced 96 G | 96 well 0.2 ml tubes, plates, strips |
| 846-x-070-241 | Biometra TAdvanced 96 SG | 96 well 0.2 ml tubes, plates, strips |
| 846-x-070-251 | Biometra TAdvanced 96 S | 96 well 0.2 ml tubes, plates, strips |
| 846-x-070-210 | Biometra TAdvanced 60 | 60 well 0.5 ml tubes |
| 846-x-070-200 | Biometra TAdvanced 60 G | 60 well 0.5 ml tubes |
| 846-x-070-224 | Biometra TAdvanced 384 | 384 well 384 well plates |
| 846-x-070-214 | Biometra TAdvanced 384 G | 384 well 384 well plates |
| 846-x-070-212 | Biometra TAdvanced Twin 48 | 2 x 48-well block (0.2 ml) |
| 846-x-070-202 | Biometra TAdvanced Twin 48 G | 2 x 48-well block (0.2 ml) and gradient function in one block |
| 846-x-070-213 | Biometra TAdvanced Twin 30 | 2 x 30-well block (0.5 ml) |
| 846-x-070-215 | Biometra TAdvanced Twin combi | 2 x 48-well (0.2 ml) and 2 x 18-well (0.5 ml) block |
| G = Gradient x = 2 for 230 V, 4 for 115 V, 5 for 100 V |
||
| Block modules and base unit | ||
| Order number | Description | Capacity |
| 846-070-231 | Biometra TAdvanced Block Module 96 | 96 well 0.2 ml tubes, plates, strips |
| 846-070-221 | Biometra TAdvanced Block Module 96 G | 96 well 0.2 ml tubes, plates, strips |
| 846-070-271 | Biometra TAdvanced Block Module 96 S | 96 well 0.2 ml tubes, plates, strips |
| 846-070-261 | Biometra TAdvanced Blockmodul 96 SG | 96 well 0.2 ml tubes, plates, strips |
| 846-070-230 | Biometra TAdvanced Block Module 60 | 60 well 0.5 ml tubes |
| 846-070-220 | Biometra TAdvanced Block Module 60 G | 60 well 0.5 ml tubes |
| 846-070-234 | Biometra TAdvanced Block Module 384 | 384 well plates |
| 846-070-224 | Biometra TAdvanced Block Module 384 G | 384 well plates |
| 846-070-232 | Biometra TAdvanced Twin Block Module 48 | 2 x 48-well block (0.2 ml) |
| 846-070-222 | Biometra TAdvanced Twin Block Module 48 G | 2 x 48-well block (0.2 ml) and gradient function in one block |
| 846-070-233 | Biometra TAdvanced Twin Block Module 30 | 2 x 30-well block (0.5 ml) |
| 846-070-235 | Biometra TAdvanced Twin Block Module combi | 2 x 48-well (0.2 ml) and 2 x 18-well (0.5 ml) block |
| 846-x-070-280 | Biometra TAdvanced Base Unit | - |
Related
-

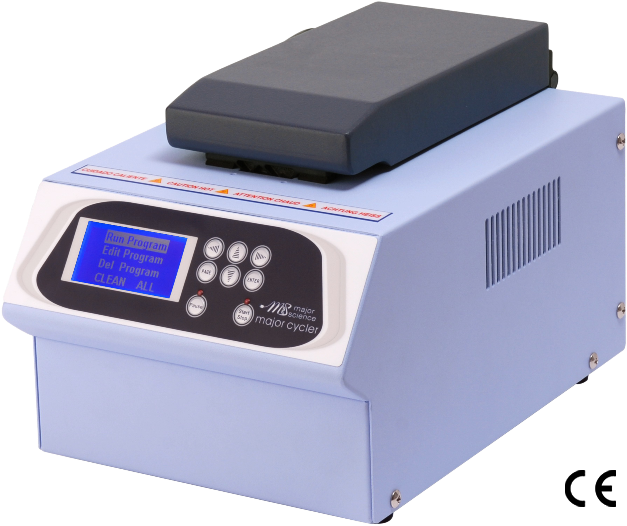

Personal Major Cycler 25x0.2ml. Tube
1MJC-CYCLER-25
-

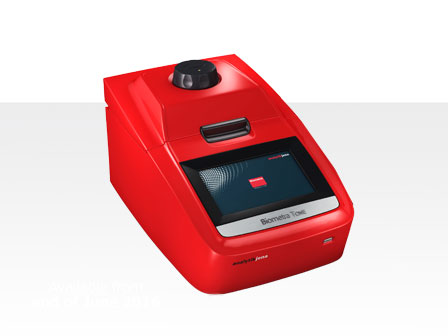

Biometra TOne 96G, 230V
1AJ-844-2-070-301
-

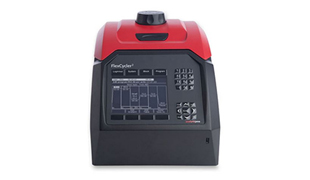

FLEXCYCLER TWIN 48G, 230V.
1AJ-844-00063-2
-

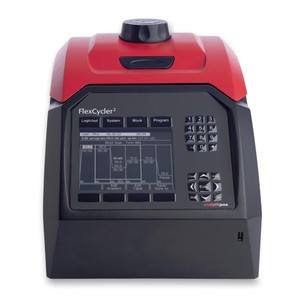

FLEXCYCLER 96G STANDARD PCR-THERMOCYCLER
