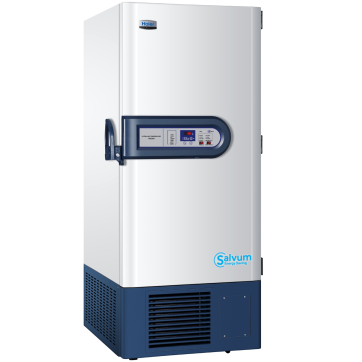

ULT FREEZER, UPRIGHT, ENERGY SAVING
Market Leading Energy Efficiency
High efficiency cooling fans and compressors combined with hydrocarbon refrigerants ensure energy savings and long term sample security
Multi Layered Sealing Structure
Triple of layer of gaskets split between main and inner doors decreases heat loss and guarantee’s excellent warm up times in the event of a power failure
Pressure Equalisation Port
Heated port with spring assisted mechanism to prevent icing on the vent allows users to reopen the main door soon after entering
Improved Handle Design
Lockable handle with unique key prevents other Haier freezer owners access to your precious samples, also comes with space for a padlock for that extra security

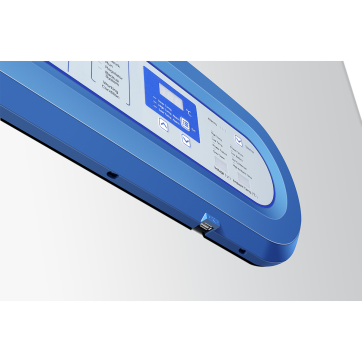

USB Interface
Enables users to download historical temperature data for compliance/auditing purposes
Multi Level Alarms
Alarming functions that include hi and low temperature, sensor error, power failure, high ambient, clean filter and door ajar
| Technical Data | |
| Type | -86℃ ULT Freeer |
| Cabinet Type | Upright |
| Climate Class | N |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HC |
| Noise Lever (dB) | 49 |
| Performance | |
| Cooling performance(℃) | -86 |
| Temperature Range(℃) | -40~-86 |
| Control | |
| Controller | Microprocessor |
| Display | LED |
| Electrical Data | |
| Power Supply(V/Hz) | 220-240/50 208-230/60 115/60 |
| Power(W) | 750 1000 1000 |
| Electrical Current(A) | 6 9 18 |
| Dimensions | |
| Capacity(L/Cu.Ft) | 578/20.4 |
| Net/Gross Weight(approx) | 300/330(kg) 661.4/727.5(lbs) |
| Interior Dimensions(W*D*H) | 620*716*1310(mm) 24.4*28.2*51.6(in) |
| Exterior Dimensions(W*D*H) | 895*980*1960(mm) 35.4*38.6*77.2(in) |
| Packing Dimensions(W*D*H) | 950*1055*2125(mm) 37.4*41.5*83.7(in) |
| Container load (20'/40'/40'H) | 12/24/24 |
| Functions | |
| High/Low Temperature | Y |
| Remote Alarm | Y |
| Hot Condenser | Y |
| Power Failure | Y |
| High/Low Voltage | N/A |
| Sensor Error | Y |
| Low Battery | Y |
| High Ambient Temp | Y |
| Door Ajar | Y |
| Accessories | |
| Caster | Y |
| Foot | Y |
| Test Hole | Y |
| Shelves/Inner Doors | 03/04/18 |
| Temperature Recorder | Optional |
| USB Interface | Y |
| Rs232/485 Interface | Optional |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Racks & Boxes | Optional |
| CO2 Backup System | |
| LN2 Backup System | |
| Chart Recorder | |
| Others | |
| Certificate | CE UL |
Download Click Here
