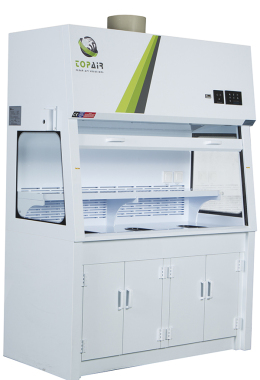

POLYPROPYLENE DUCTLESS FUME HOOD SPECIAL PP WORKSHOP THAT CAN BE REMOVED EASILY
Topair’s Polypropylene Ductless Fume Hoods provide a safe work environment for lab staff working with acids and harsh chemicals.
The electrical and mechanical components are manufactured by leading global companies, such as AAF USA. The products are EN-14175 / CE / ASHRAE 110-1995 certified.
TopAir’s Polypropylene Ductless Fume Hoods are customized to the requirements of each client.
- Polypropylene structure with high chemical resistance
- Built-in sealed polypropylene worktop
- Optional stand
- Easily dissembled back wall
- Tempered glass sliding front window
- Monitor displays fan’s total operation time, for tracking and filter replacement purposes
- Top quality quiet fan
- Eco-friendly, cost-effective 800 LUX LED lighting separated from the work area
- Wind speed at 0.5±0.1 m/s, 100±20 FPM
- Convenient front access for filter replacement
- Top filtration unit including variety of HEPA & carbon filters
- User-friendly digital control system
- EN-14175 / CE / ASHRAE 110-1995 certified
| Spec/ Model | CF-060-PP | CF-090-PP | CF-120-PP | CF-150-PP | CF-180-PP |
| Outer Dimensions W x D x H |
600 x 750 x 1223 mm 23.62 x 29.5 x 48” |
900 x 750 x 1223 mm 35.4 x 29.5 x 48” |
1200 x 750 x 1223 mm mm 47.24 x 29.5 x 48” |
1500 x 750 x 1223 mm mm 59 x 29.5 x 48” |
1800 x 750 x 1223 mm mm 70.8 x 29.5 x 48” |
| Workspace (W x D x H) |
585 x 610 x 695 mm 23 x 24 x 27.3" |
885 x 610 x 695 mm 34.8 x 24 x 27.3" |
1185 x 610 x 695 mm 46.6 x 24 x 27.3" |
1485 x 610 x 695 mm 58.4 x 24 x 27.3" |
1785 x 610 x 695 mm 70.2 x 24 x 27.3" |
| Front Sash Opening | 570 mm / 22.4" | 570 mm / 22.4" | 570 mm / 22.4" | 570 mm / 22.4" | 570 mm / 22.4" |
| Production / Test Standard |
EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 | EN-14175 / CE / ASHRAE 110-1995 |
| Air Velocity | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM | 0.5±0.1 m/s, 100±20 FPM |
| Cabinet Material | Welded white polypropylene structure with built-in sealed polypropylene worktop | Welded white polypropylene structure with built-in sealed polypropylene worktop | Welded white polypropylene structure with built-in sealed polypropylene worktop | Welded white polypropylene structure with built-in sealed polypropylene worktop | Welded white polypropylene structure with built-in sealed polypropylene worktop |
| Noise Level | <52dB | <52dB | <54dB | <60dB | <62dB |
| Testing | (Tested 20 cm from the work table, 1.2m above ground) | (Tested 20 cm from the work table, 1.2m above ground) | (Tested 20 cm from the work table, 1.2m above ground) | (Tested 20 cm from the work table, 1.2m above ground) | (Tested 20 cm from the work table, 1.2m above ground) |
| Power Supply Options |
110 / 220V 50/60 Hz, Single phase | 110 / 220V 50/60 Hz, Single phase | 110 / 220V 50/60 Hz, Single phase | 110 / 220V 50/60 Hz, Single phase | 110 / 220V 50/60 Hz, Single phase |
| Illumination | 800 LUX, Eco-friendly LED lighting | 800 LUX, Eco-friendly LED lighting | 800 LUX, Eco-friendly LED lighting | 800 LUX, Eco-friendly LED lighting | 800 LUX, Eco-friendly LED lighting |
| Filter | Charcoal Filter/ multi-gas filter/ HEPA | Charcoal Filter/ multi-gas filter/ HEPA | Charcoal Filter/ multi-gas filter/ HEPA | Charcoal Filter/ multi-gas filter/ HEPA | Charcoal Filter/ multi-gas filter/ HEPA |
| Description | Model |
|---|---|
| Metal Stand | CF-size-ST |
| Polypropylene base cabinet | CF-size-BS |
| UV light | CF-size-BS |
| Gas tap | CF-GTAP |
| Water tap | CF-WTAP |
| Polypropylene sink 30 x 40 | CF-SINK-3040 |
| Power outlet installed | CF-SOCKET |
Download product datasheet Click Here
