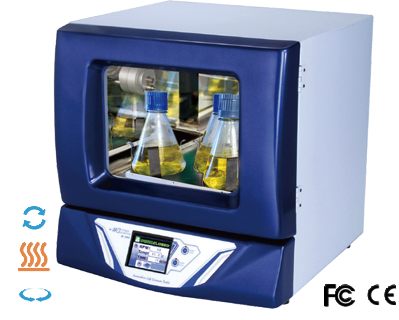

MS Hybridization Shaking Oven, Orbital
MS Hybridization Oven series is the advanced and newly renovated version of MS Oven. Besides all the advantages that previous generation has, the two models of MS Hybridization Oven are designed to equip with built-in rotisserie function. The difference of the two models lies in the shaking motion. MO-AOR is embedded with orbital shaking platform while MO-ARK provides an optional rocking one (MO-SEESAW). MS Hybridization Oven is ideal for nucleic acid hybridization and incubation such as Southern, Northern, and Western blot. Full accessories are also available upon request to meet different applications.
• Built-in rotisserie function
• Orbital/ Rocking shaking motion
• Large touch screen: 3.5” color display
• Temperature uniformity and accuracy: ±0.2°C at 37°C
• Broad temperature control range: ambient +5°C to 85°C
• User temperature calibration
• Safety door switch
• Timer with alarm function
• Power failure auto recovery
• Sturdy, stackable construction
| Cat. No. | MO-AOR | |||||
| Display | 3.5" 64K color TFT display | |||||
| Controller | 32-bits Microprocessor | |||||
| Control Interface | Touch screen & graphical interface | |||||
| Rotisserie Function | Yes | |||||
| Rotisserie Speed / Inc. | 5 - 100rpm / 1rpm | |||||
| Timer | 9999 (min) with alarm / Continuous | |||||
| Shaker Motion | Orbital clockwise / counterclockwise | |||||
| Shaker Speed | 0 - 200rpm | |||||
| Temperature Control Range | Ambient +5°C to 85°C | |||||
| Temperature Increment | 0.1°C | |||||
| Temperature Uniformity | ± 0.2°C at 37°C | |||||
| Temperature Accuracy | ± 0.2°C at 37°C | |||||
| User Temperature Calibration | Yes | |||||
| Inner Chamber Dimensions (WxLxH) | Approx. 13.4"x8.9"x10.2" (340x225x260mm) | |||||
| Inner Chamber Volume | Approx. 5.28gal (20L) | |||||
| Dimension (WxLxH) | Approx. 17.4"x18.2"x17.8" (442x462x452mm) | |||||
| Platform (WxL) | Approx. 10.6"x7.9" (270x200mm) | |||||
| Data Logging | RS-232 | |||||
| Weight | Approx. 63.9lb (29kg) | |||||
| Rated Voltage | 110 / 220V~ 50 / 60Hz (Selectable) | |||||
| Construction | Painted iron metal with ABS front door | |||||
| Safety Device |
Safety door switch | |||||
| Thermal safety switch | ||||||
| Auto shut off upon fan failure | ||||||
| Power failure auto recovery | ||||||
| Cat. No. | MO-A01 | MO-AOR | MO-ARK | |||
| Rotisserie Function | N/A | Yes | Yes | |||
| Rotisserie Speed / Inc. | N/A | 5-100rpm / 1rpm | 5-100rpm / 1rpm | |||
| Shaker Motion | N/A | Orbital clockwise / counterclockwise |
Rocking* | |||
| Shaker Speed | N/A | 0-200rpm | 5-100rpm | |||
| Max. set of flask holder | ||||||
| Flask | MO-AOR | MO-SEESAW | ||||
| 50ml | 8 | 5 | ||||
| 125ml | 8 | 5 | ||||
| 250ml | 5 | 5 | ||||
| 500ml | 2 | 1 | ||||
| Cat. No | Product Description |
| MO-01-PF | 1 layer of stainless steel mesh plate with 4 plate holders |
| MO-HY-8RT | 40mm tube rotisserie for 8 tubes |
| MO-HY-16RT | 50ml conical tube rotisserie for 16 tubes |
| MO-HY-24RT | 15ml conical tube rotisserie for 24 tubes |
| MO-P2320 | Additional 230x200mm platform for orbital and reciprocal shaker (with 4 of 100mm pillars) |
| MO-SEESAW | Rocking Shaker platform for MO-ARK |
| SI-200-08 | Flask Holder, 50ml |
| SI-200-09 | Flask Holder, 125ml |
| SI-200-10 | Flask Holder, 250ml |
| SI-200-11 | Flask Holder, 500ml |
| MO-BT40x150 | Glass tube 40x150mm (diameter x length) |
| MO-BT40x200 | Glass tube 40x200mm (diameter x length) |
| MO-BT40x300 | Glass tube 40x300mm (diameter x length) |
Catalogue_W12-Incubator Click Here
Brochure-015-Incubator Click Here
