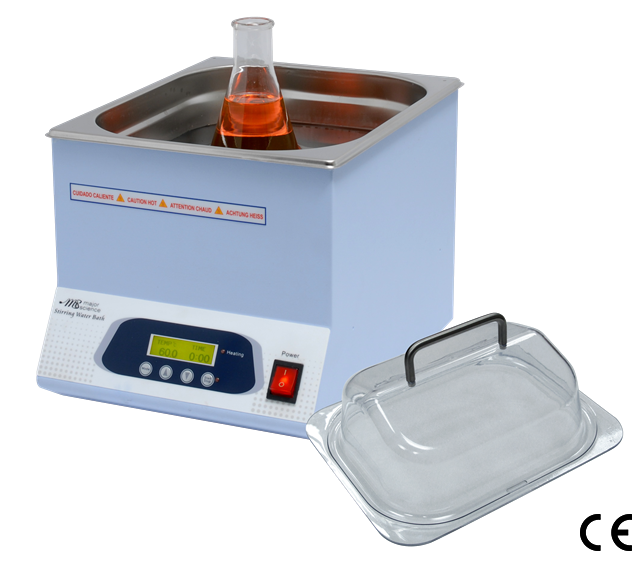

Stirring Water Bath 10L., 1 stirring
• Microprocessor control with digital performance for precise, accurate control
• Built-in magnetic stirring mechanism for water agitation, water temperature uniformity and medium solution mixing
• Stirring speed control
• LCD screen shows temperature and timer simultaneously
• User temperature calibration
• Safety device: warning indication on screen to avoid overheating and automatic shut down
• Multiple stirring mechanism capability
• Data Logging software available
Max. Capability: 6 sets of 250ml flasks
4 sets of 500ml flasks
|
|
||
|
|
||
|
|
||
|
Water Volume : 5 liters Process Time : approx. 34mins
|
||
|
|
|
|
|
Concave lid design allows condensation flow back to the tank.
|
Side opening of the lid to allow minimum evaporation while maintaining water bath temperature. |
Water Circulation Function |
|
|
||
|
|
||
| Cat. No. | SWB-10L-1 | SWB-10L-2 |
| Number of stirring mechanisms | 1 | 2 |
| Stirring speed | 400-1500rpm (measured by percentage) | |
| Bath capacity | Approx. 2.64gal (10L) | |
| Water circulation function | Yes | |
| Display | LCD | |
| Heating power | 600W | |
| Controller | Digital microprocessor controller | |
| Bath temperature | 5 oC above ambient to 99 oC | |
| Temperature increment | 0.1oC | |
| Temperature accuracy | +/- 0.2 oC at 37 oC | |
| Temperature calibration | Yes | |
| Timer | 99 (hr): 59 (min) / Continuous | |
| Safety device | Warning indication on screen with alarm and automatic shut down | |
| Operating temperature | Ambient to 40 oC | |
| Bath Tank material | 304 stainless steel | |
| Bath Inner dimension (WxLxH) |
9.45"x11.81"x5.91" (240x300x150mm) |
|
| Dimension (WxLxH) |
10.04"x13.98"x9.45" (255x355x240mm) (without lid) |
|
| Rear drainage port | N / A | |
| Material | Painted iron metal | |
| Lid material | Polycarbonate with stainless steel handle | |
| Communication port | RS232 | |
| Weight | Approx. 19.8lb (9kg) | |
| Rated voltage | 110V / 220V | |
|
Cat. No. |
Product Description |
|
SWB-LID10 |
Transparent lid for 10L Stirring Water Bath |
|
SWB-RS232 |
RS 232 cable for data logging |
|
SWB-DLSW |
Data Logging software package |
|
SWB-DLSW-R |
Data Logging software package, include a RS 232 cable |
Catalogue_W14-StirringBath Click Here
Brochure-017-StirringWaterBath Click Here
Related
-

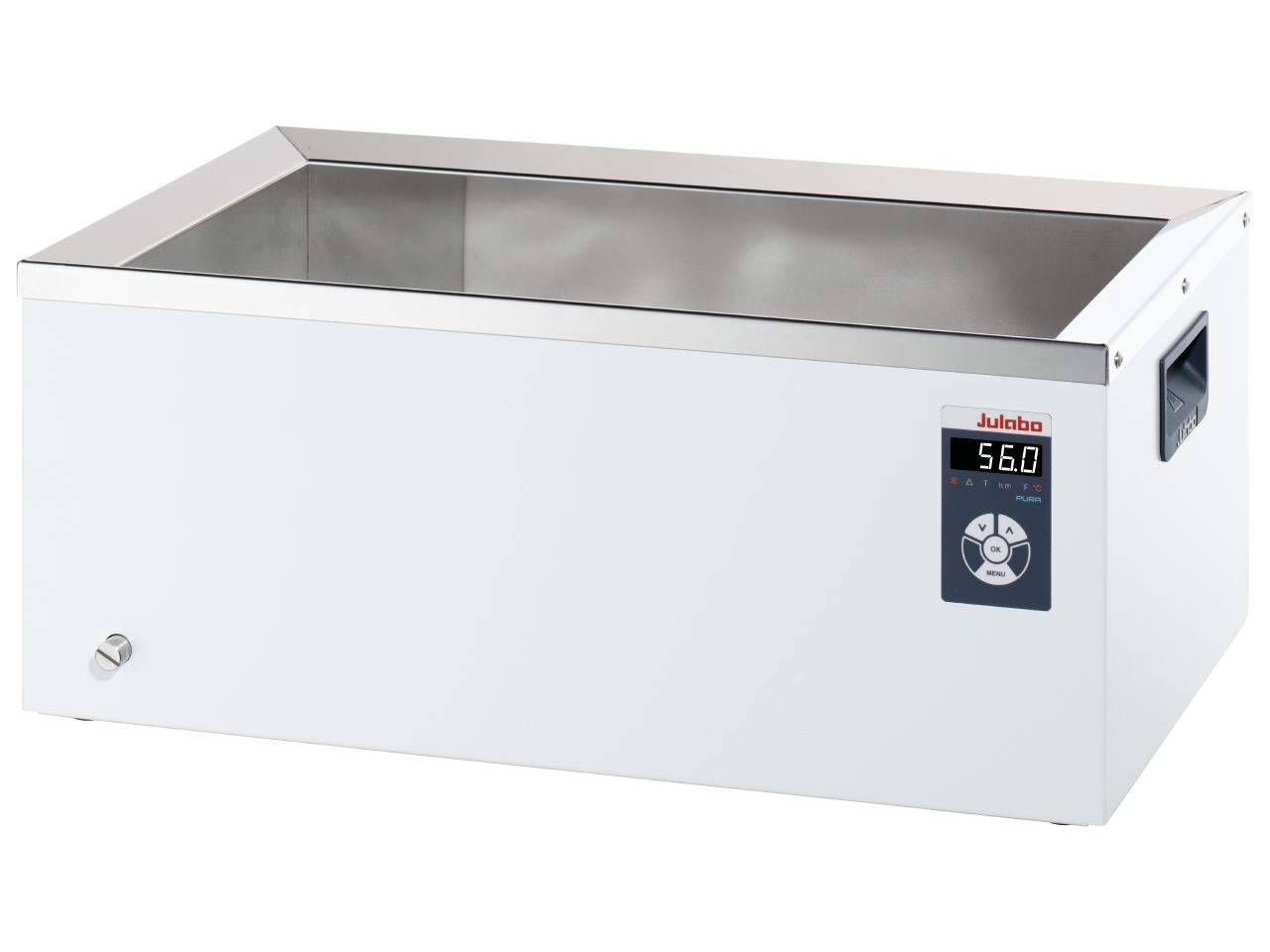

PURA 22 WATER BATH
2JLG-9550522
-

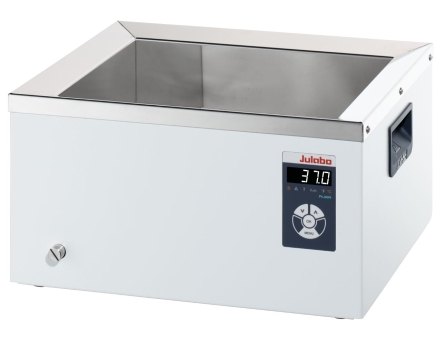

PURA 14 WATER BATH
2JLG-9550514
-
PURA 30 WATER BATH
2JLG-9550430
-
PURA 22
2JLG-9550422
-

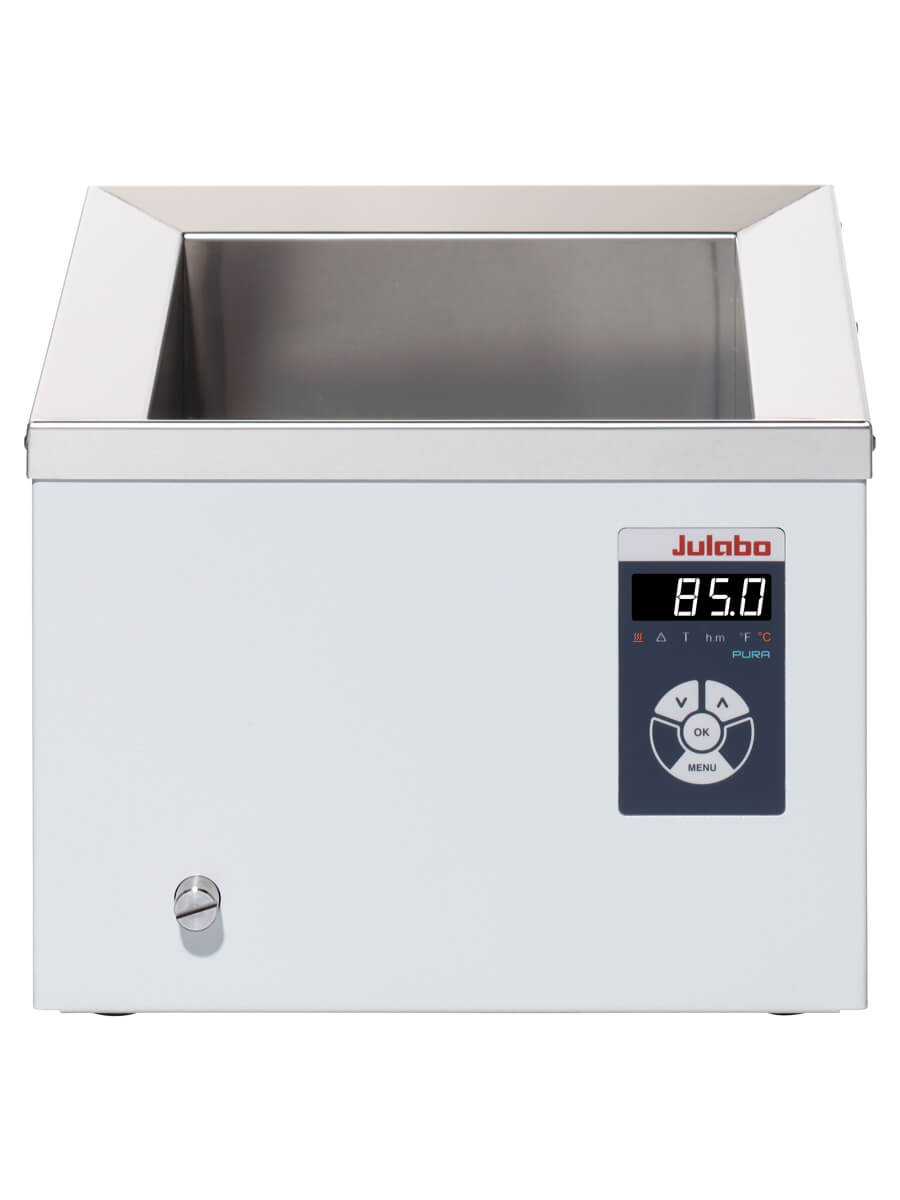

PURA10 WATER BATH
2JLG-9550410
-

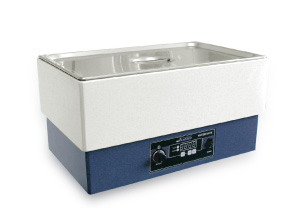

DIGITAL WATER BATH, 22L W/GABLE LID
2EST-LWB-122D
-
DIGITAL WATER BATH, 11L W/GABLE LID
2EST-LWB-111D
-

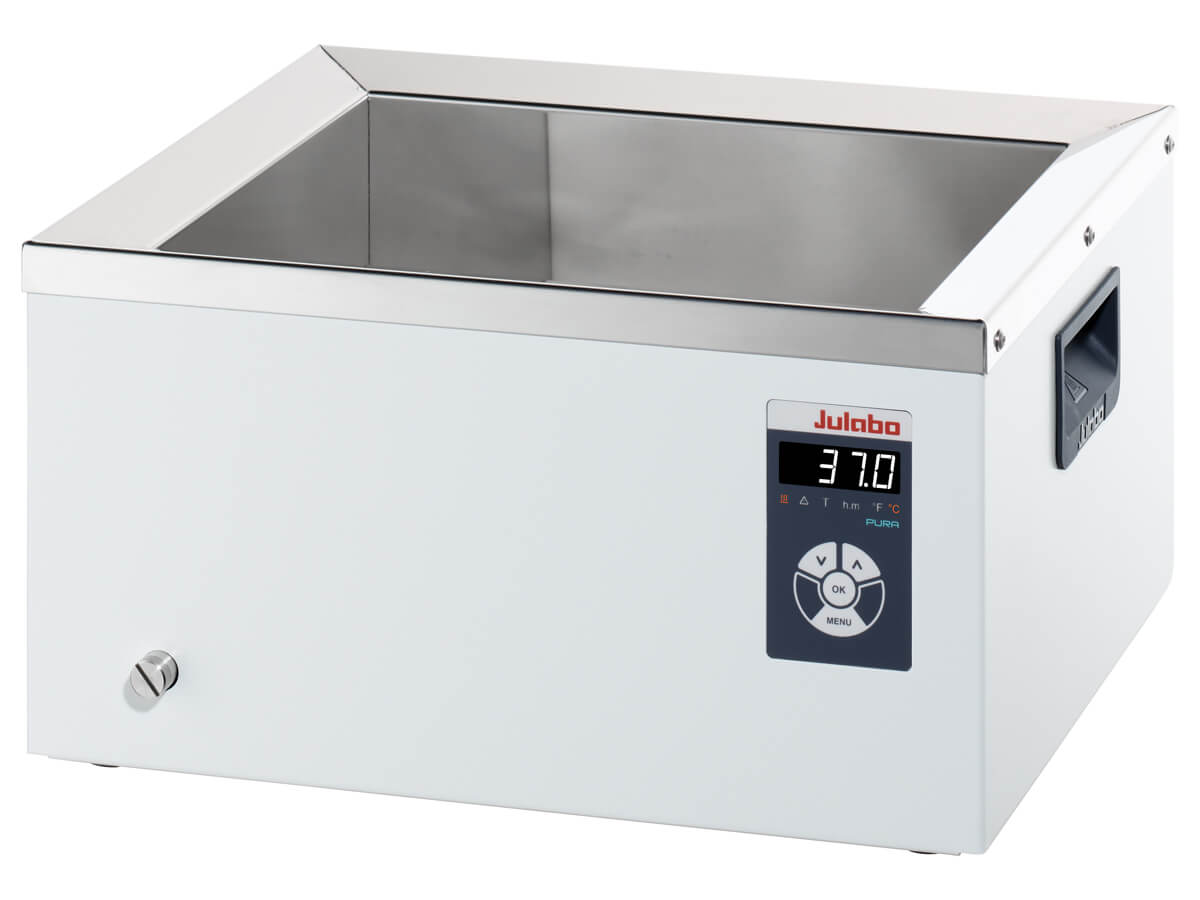

PURA 14
2JLG-9550414
-

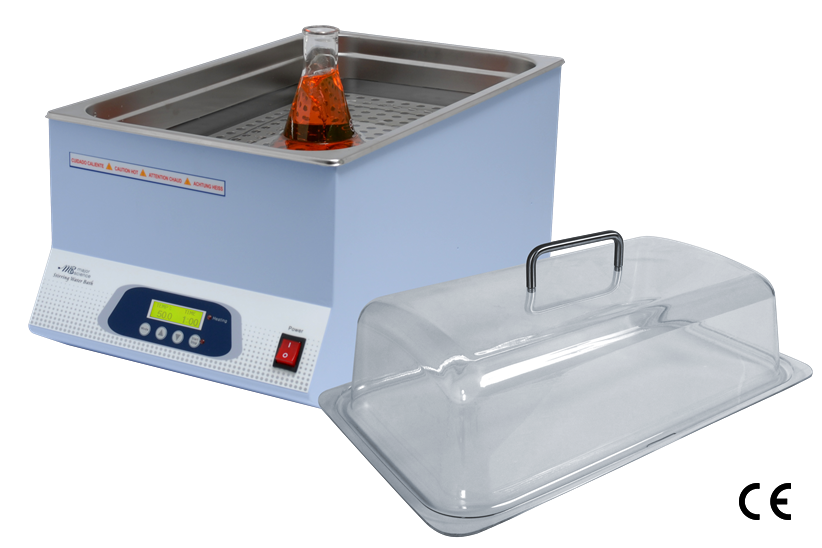

Stirring Water Bath 20L., 1 stirring
2MJC-SWB-20L-1
-
Water bath, model 20C, 100?C max.
2AI-WB-20C
-
Water bath, model 10C, 100?C max.
2AI-WB-10C
-
DIGITAL WATER BATH, 22 L.
2EST-EWB-122D
-
DIGITAL WATER BATH, 11 L.
2EST-EWB-111D
-

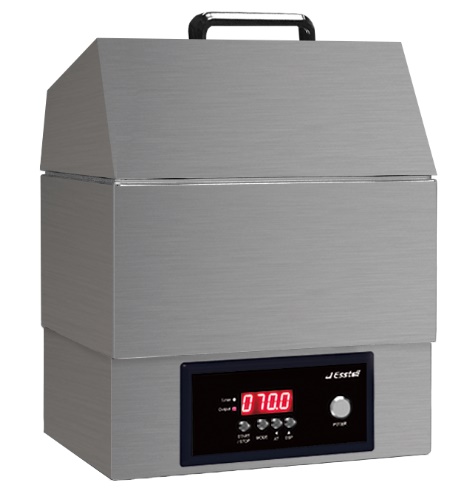

DIGITAL WATER BATH, 6 L.
2EST-EWB-106D
-
PURA30 WATER BATH
2JLG-9950430
-

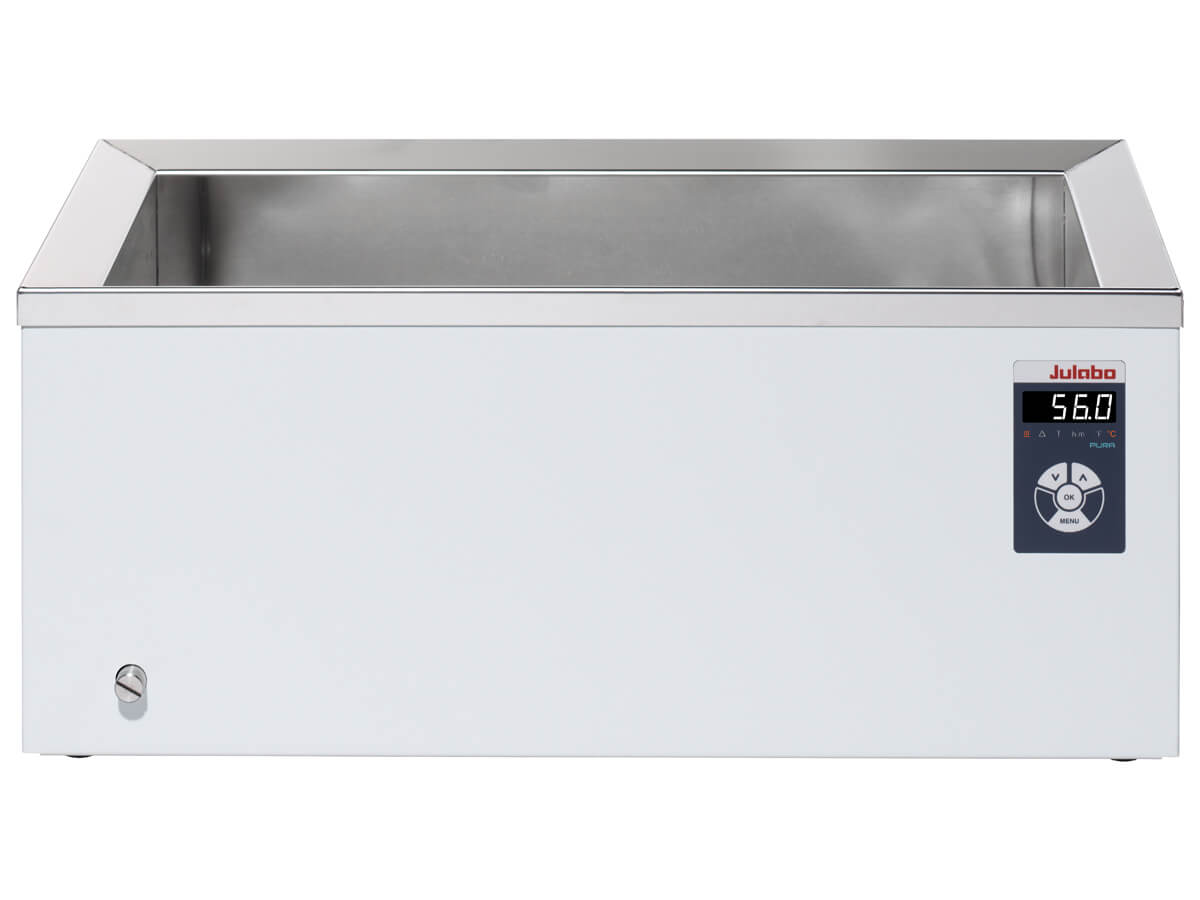

PURA22 WATER BATH
2JLG-9950422
-
PURA14 WATER BATH
2JLG-9950414
-

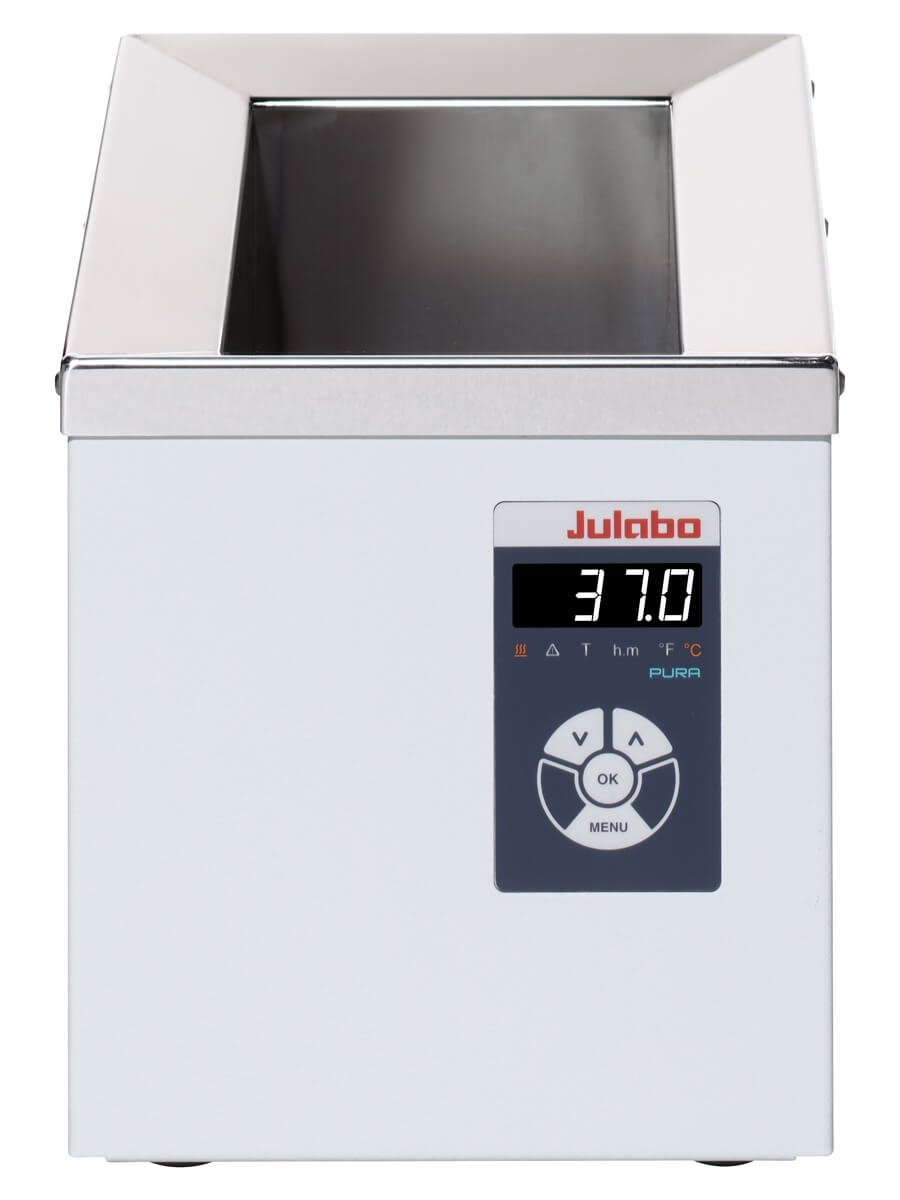

PURA4 WATER BATH
2JLG-9950404
-

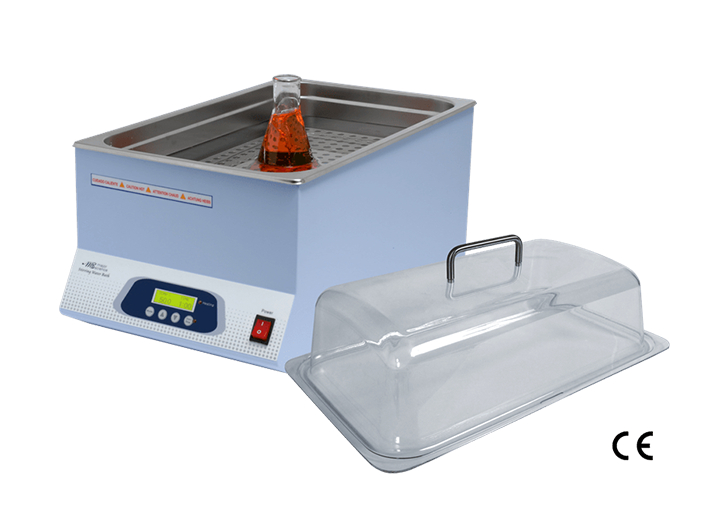

STIRRING WATER BATH 20 L.
2MJC-SWB-20L-1-220
-

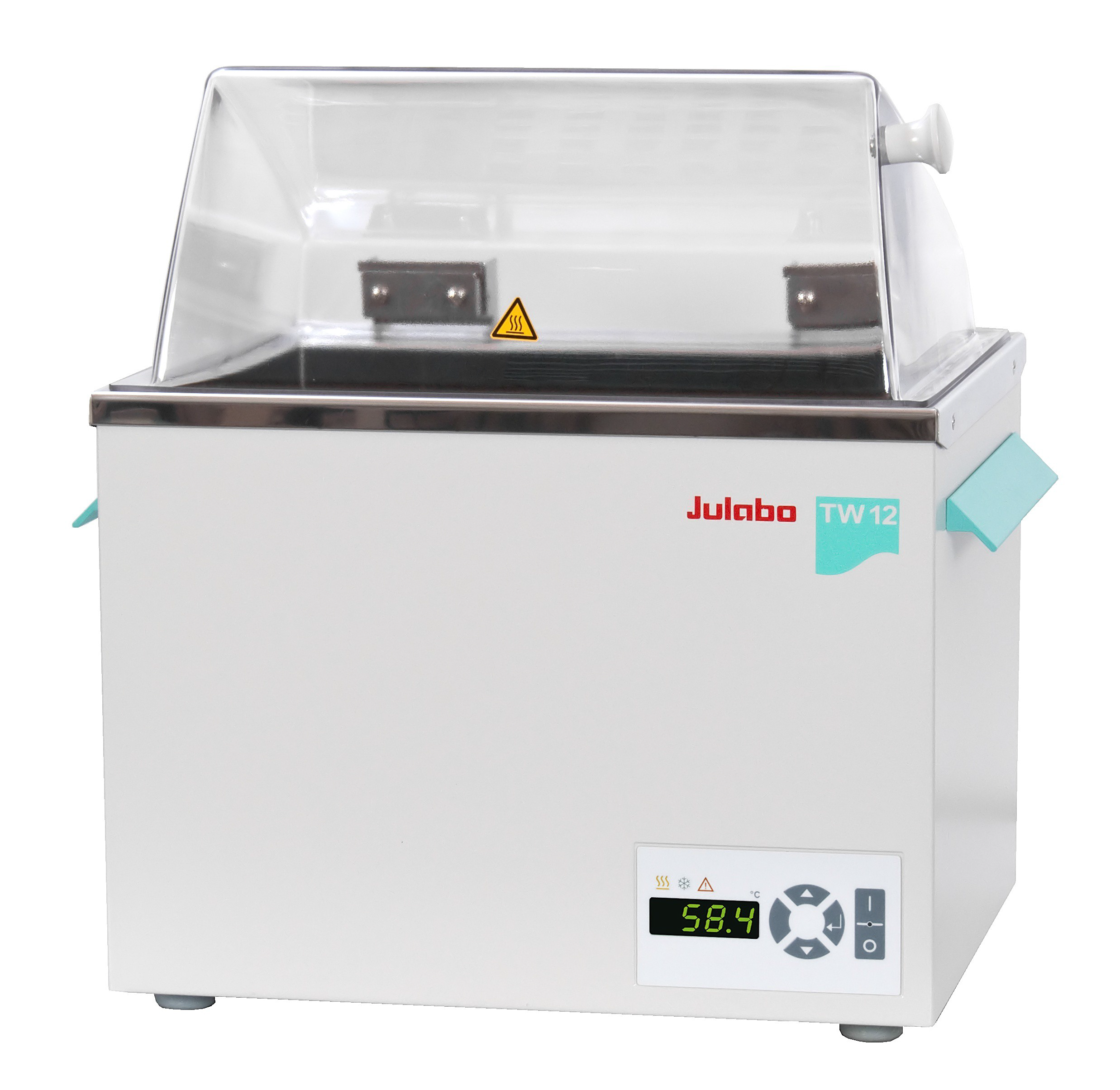

TW12 WATER BATH
2JLG-9550112
-

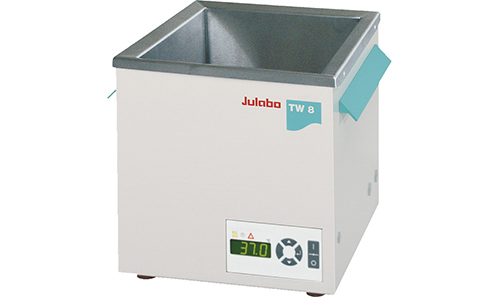

TW8 WATER BATH
