3D, SUNFLOWER MINI-SHAKER W/STANDARD PLATFORM
“Sunflower” 3D Mini–Shaker provides adjustable three-dimensional smooth rotation of the platform and is designed for mixing blood samples, for minigel staining and destaining, sample washing, blot hybridization reactions.
Mini–Shaker is a compact device with low energy consumption. The use of direct drive and brushless motor allows continuous mixing up to 7 days and ensures reliable, trouble-free operation for more than 2 years.
Non–slip, temperature resistant, silicone mat located on the shaker’s platform provides stable position for vessels during shaking. The platform is suitable for placing a versatile dimpled PDM mat for different size tubes.
Mini–Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.

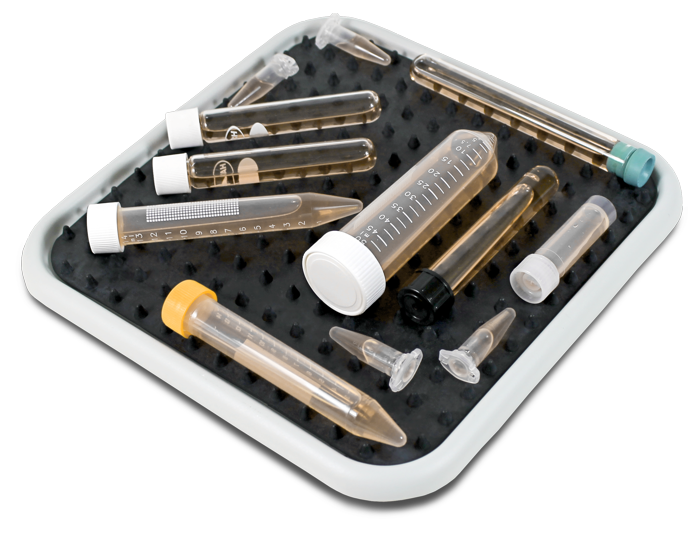

Optional dimpled mat PDM prevents different size tubes from rolling around the platform.
| Speed control range | 5–60 rpm |
| Fixed tilt angle | 7° |
| Direct drive mechanism | + |
| Maximum continuous operation time | 168 hrs |
| Maximum load | 1 kg |
| Platform working area | 215x215 mm |
| Overall dimensions (W×D×H) | 235x235x140 mm (with platform) |
| Weight | 1.2 kg |
| Input current/power consumption | 12 V, 260 mA/3.1 W |
| External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
| PDM | PDM, dimpled mat |
| BS-010151-AK | IQ OQ document |
| BS-010151-BK | PQ document |
| ---------------- | Replacement parts |
| BS-010125-AK | Bio PP-4S, detachable platform with non-slip thermoresistant silicone mat |
3D - User manual Click Here
3D, Sunflower Mini-Shaker Click Here
DoC certificate - rockers, shakers, rotators, vortexes Click Here
