DIGIMAGE SYSTEM W/ETBR FILTER

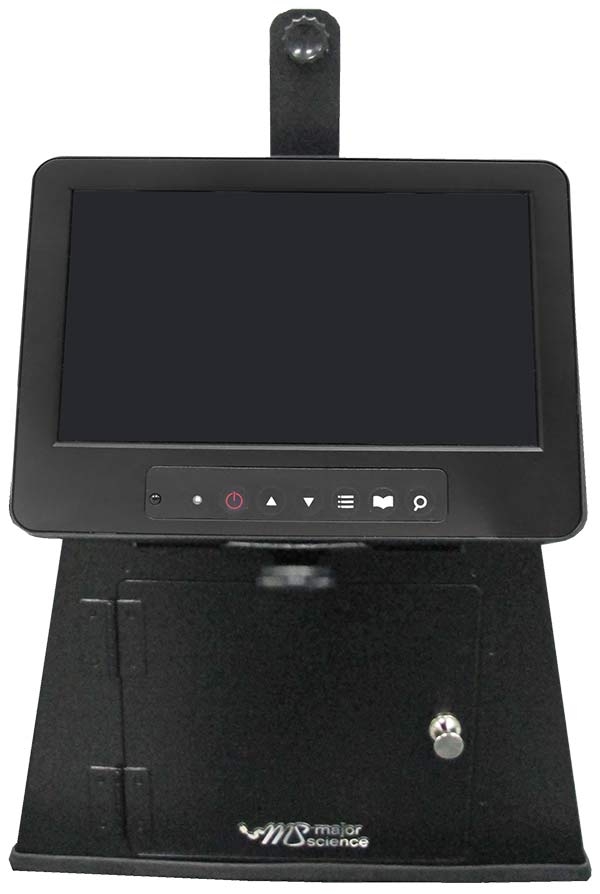

The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains the Canon EOS M10, a digital camera with a superb resolution of 18 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only. For a lab with limited space and low budget requirements, the Digimage System is definitely your top choice since it's computer-free operateion. A variety of images can be captured including: agarose and other fluorescent gels, colorimetric gels, auto radiography film, and blotting membrane. A safety switch is equipped to turn off the UV Transilluminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis.
• 18 megapixel digital camera
• High resolution 8” TFT screen
• Digital control panel
• Compact chamber and lightweight
• Can be operated PC free
• Inner white light LED at two sides
• Safety door switch
• Optional gel analysis software package available
• Universal rated voltage: 100-240V~
|
DI-01 Spec. |
|
|
Multi-Power Source |
For camera, Inner light lamp, TFT monitor |
|
Inner White Light |
2 white LED, 3 watt/LED |
|
Safety Device |
Safety door switch |
|
Dimension (WxLxH) |
11.4"x13.3"x15.9" (290x339x403mm) |
|
Material |
Painted metal |
|
Rated Voltage |
110/220V~, 50/60Hz, 1.6A |
|
Weight |
Approx. 12.9lb (5.8kg) |
|
Camera Adapter |
Aluminum |
|
DI Darkroom |
|
|
Dimension (WxLxH) |
11.4"x13.3"x15.7" (290x339x398mm) |
|
Weight |
Approx. 11.9lb (5.4kg) |
|
Cat. No. |
Description |
|
MBE-IMG-SW |
MS 1D Analysis Software |
|
DI-TOTALLAB |
Totallab 1D Gel Analysis Software |
|
DI-DR-E12 |
DC coupler |
|
DI-WLA3-110/220 |
White Light Table 297x400mm (110/220V) |
|
DI-WLA4-110/220 |
White Light Table 210x297mm (110/220V) |
|
DI-WLA6-110/220 |
White Light Table 105x150mm (110/220V) |
|
Filter (for camera) *ordered separately |
|
|
DI-EB49 |
EtBr filter, 49mm |
|
DI-SG49 |
SYBR Green filter, 49mm |
|
DI-AM49 |
Amber filter, 49mm |
Catalogue_W10-Gel Click Here
