BLUPAD, LED TRANSILLUMINATOR

Cat. No. : 1BHC-BP001CU
Brand : : Bio-Helix

ADD TO WISH LIST

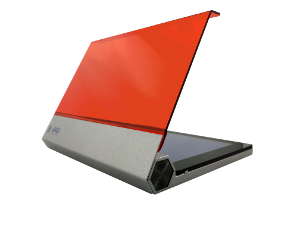

BluPAD Dual LED Blue / White Light Transilluminator

The BluPAD, as an innovatively designed transilluminator with dual light sources, is applicable in various Life Sciences research areas for observing and analyzing the nucleic acids and proteins. Given its most optimal and humanized design for the post-observation applications, such as gel cutting and data imaging and filing, it is desired to provide the researchers with a brand-new comfortable, convenient, and safe experience.

• Dual Light Sources

LED White Light and Blue Light: Broad ranges of applicability and compatibility in basic science and medical diagnosis research fields.

• Magnetic Filter

The hinges-free design offers simplicity, safety, and convenience to the user and will not cause any damage to the filter near the hinges. Conducting the observation and gel-cutting does not require the protective goggles.

• Bottom-Up LED Illumination

It prevents the interference from the reflective lights that are caused by the side illumination, thus improving the observational and imaging quality. Since the LED lights are endurable and safe, it does not cause damage to the eyes and skin or to the experiment sample as normally found with the UV illumination.

• Adjustable Light Intensity (3 Levels)

Adjusting the light intensity and contrast based on the sample quantity or observational requirement will achieve the best observational or imaging quality.

• 5 Minute Automatic Power-Off

It protects the transilluminator from the risk that is caused by the user’s operational negligence.

• Designer Metal Housing

The transilluminator’s base is rendered more stable, thus facilitating the operational process.

• Exquisite and Compact Design

It offers the ease of mobility and storage and is suitable for the experimental observation during the field study.

• Enhanced Portability with the Power Bank

Hassle-free for performing the outdoor experiment.

**The power bank is NOT INCLUDED in the package and needs to be purchased by the user.

Specification	BluPAD
Unit Dimensions ( WLH ):	18.5 * 22 * 3 cm
Gel Viewing Dimensions ( W*L):	12 * 18 cm
Input Voltage:	100 - 240 Vac
Input Current:	2.0 A
LED Source:	Built-in blue light & white light LED module
LED life ( hours ):	>30,000
Emission maxima ( nm ):	470 nm
Store temperature:	25℃
Automatic Power-Off:	5 mins
Filter Type:	Amber filter (580nm)

Manual	BluPAD_Instruction_Manual.pdf
Certification｜ETL	BluPAD_ETL_Certification_Intertek_VOC.pdf
Patent｜Certification Number: M543442	Taiwan_Patent_Publication_Number_M543442.pdf
Patent｜Certification Number: 6773227	Certificate_of_Utility_Model_Patent_CN.pdf
eFlyer	BluPAD_DM.pdf
