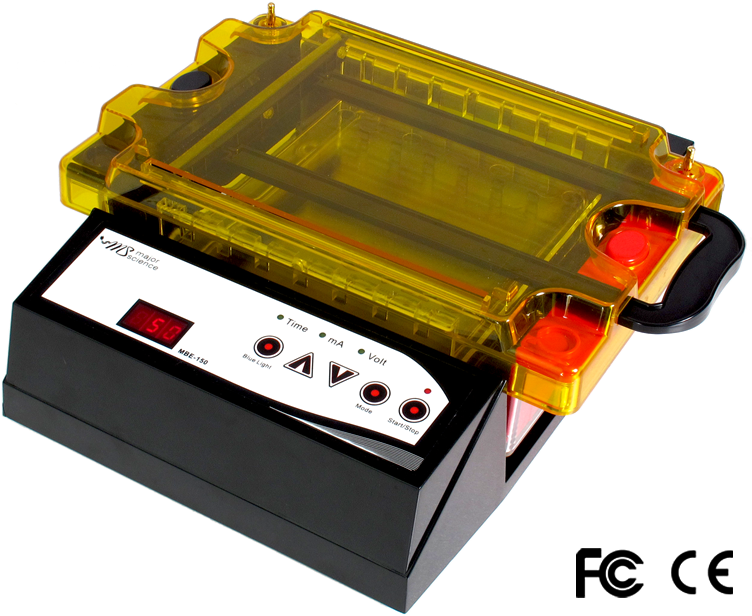

SAFEBLUE Electrophoresis System

Cat. No. : 1MJC-MBE-150PLUS
Brand : : Major Science

ADD TO WISH LIST

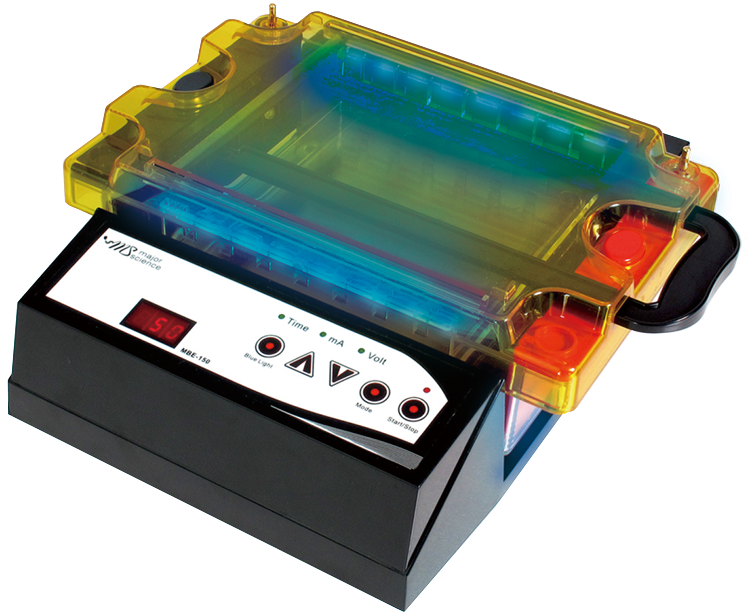

The SafeBlue Electrophoresis System also uses blue LED light to allow for immediate visualization of DNA/RNA bands while running agarose electrophoresis gel. The complete system comes with three different sizes of gel trays for your convenience of use, 150x70mm, 150x100mm and 150x150mm. The system is RoHS and CE compliant for environmental and safety concerns. Different accessories are also available for user to select

• Innovative - a complete 4-in-1 system (run, view, capture and cut gel) with simple and easy set up
on the image capture/analysis software.
• Convenient - run as you see, real time visualization on your DNA/RNA band migration
• Compact - footprint smaller than most UV transilluminator, easy to move and ideal for limited bench top space
• Economical - an inexpensive imager system with digital camera. Multiple accessories are also available to
increase experimental efficiency
• Safe - 470nm blue light less invasive than UV light
• Flexible - UV tray adaptors available, compatible with MJ-105A or Mupid 2.
• Versatile - support gel trays 150x150mm or smaller
• Optimized performance - Major Blue, SYBR series DNA/RNA stains, Novel Juice and Midori Green series
• Simple - DNA/RNA recovery method

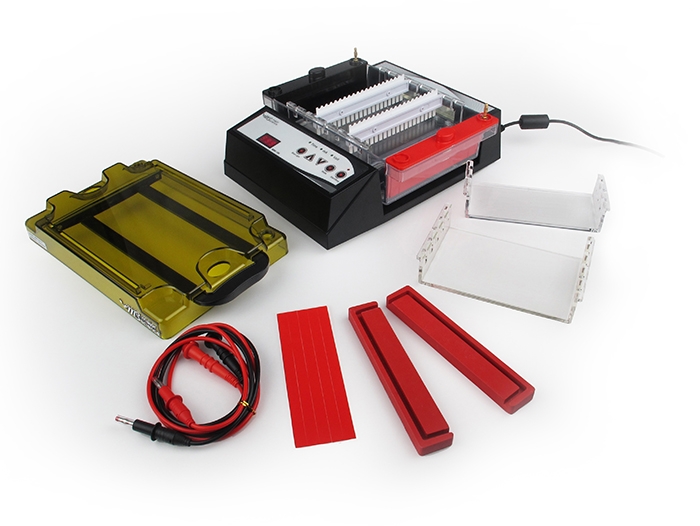

MBE-150-PLUS includes:

• 1 x SafeBlue Illuminator
• 1 x SafeBlue Electrophoresis Tank
• 1 x Filter lid
• 1 x Threaded Black and Red Electrophoresis Cable
• 1 x 150x70mm UV tray
• 1 x 150x100mm UV tray
• 1 x 150x150mm UV tray
• 2 x 20 sample combs (1mm thick)
• 2 x UV tray casting dams
• 1 x SafeBlue electrophoresis gel tank image enhancer film

Cat. No.	MBE-150
Output Voltage / Inc.	10-150V / 1V
Output Current / Inc.	10-300mA / 1mA
Max. Power	30W
Operating Mode	Constant Voltage or Current
Timer	999 (min) with alarm / Continuous
Safety Device	No load detection
Crossover	Yes
Blue Light Wavelength	470nm
Operating Temperature	Ambient to 40oC
Dimension (WxLxH)	Approx. 11.5"x7.9"x3.2" (293x200x80mm)
Weight	Approx. 2.4lb (1.1kg)
Material	Polycarbonate housing and aluminum base plate
Power Adaptor	Input: 100-240VAC, 50/60Hz, 1.4A
Power Adaptor	Output: 15VDC, 4.0A, 60W max.
Cat. No.	MBE-TANK
Dimension (WxLxH)	Approx. 10.4"x6.9"x3.5" (265x175x90mm)
Gel Dimension (WxL)	Approx. 5.9"x2.8" (150x70mm), 5.9"x3.9" (150x100mm), 5.9"x5.9" (150x150mm)
Maximum Sample	70 for 5.9"x2.8" (150x70mm) Tray (2x35 sample combs)
	140 for 5.9"x3.9" (150x100mm) Tray (4x35 sample combs)
	210 for 5.9"x5.9" (150x150mm) Tray (6x35 sample combs)
Buffer Volume	500ml
Construction	Acrylic (Injection molded construction)
Construction	Durable, leak proof environment for complete safety and long life
Cassette Type Electrode	Inexpensive, easy to replace
Electrical Safety	Lid can only be fastened in one way
Electrical Safety	Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel	Use casting dams
Cat. No.	MBE-LID-Y1
Dimension (WxLxH)	Approx. 6.9"x10.6"x1.4" (176x268x35mm)
Filter Type	Amber filter (for dyes selection please refer to comparison table for various nucleic acid stain performance, page 69)
Lid Filter Wiper	Used to remove condensation
Material	Polycarbonate

Cat. No.	Product Description
MBE-TANK	ME15 Tank for SafeBlue without Lid and Red/Black Cable
MBE-LID-Y1	MBE-150 Lid,yellow
MBE-150-CABLE	Threaded Black and Red Electrophoresis Cable
MBE-TANK-01	120x155mm, shiny black protective film
MBE-150-01	Darkroom Viewer of MBE-150
MBE-150-02	165x140x19mm, Acrylics, cutting platform
MBE-150-3	Base unit platform protective film
ME15-UV15-TH01	ME15-UV15 Tray Holder, 2 cuts, cut size 109.5x60.5mm(For MJ-105 Trays)
ME15-UV15-TH02	ME15-UV15 Tray Holder, 1 cuts, cut size 130.5x122.5mm
MBE-G-Y1	Amber filter viewing glasses, 560nm
MST-50	Major Blue 50 µl
MST-1000	Major Blue 1000 µl

* For more information of MBE-IMG-CA/CM, please refer to SafeBlue Imager System.

Comparison table for various nucleic acid stain performance

Nucleic Acid Stain	Performance	Experimental Protocol
Nucleic Acid Stain	Performance	Pre-staining	Post Staining	Sample Staining
Major Blue	Excellent			√
SYBR® Green I (DNA)	Excellent	√	√	√
SYBR® Green II (RNA)	Excellent		√	√
SYBR® Gold	Excellent	√	√
Midori Green Driect	Excellent			√
Hydra Green™ Safe DNA Dye	Excellent	√	√
HD Green™ DNA Stain	Excellent	√	√
Novel Juice	Excellent			√
SafeView DNA Stain	Good	√
SYBR® Safe	Good	√	√
Midori Green	Good	√	√
Midori Green Advanced	Good	√	√
Serva DNA Stain Clear G	Good	√	√
GelGreen ™	Good	√	√
GelRed ™	NR	√	√
Ethidium Bromide	NR	√	√
HealthView ™	NR	√
