SMARTVIEW PRO2000 IMAGER SYSTEM W/OPTICAL ETBR FILTER

SMARTVIEW PRO2000 IMAGER SYSTEM W/OPTICAL ETBR FILTER

Cat. No. : 1MJC-UVCI-2100
Brand : : Major Science

ADD TO WISH LIST

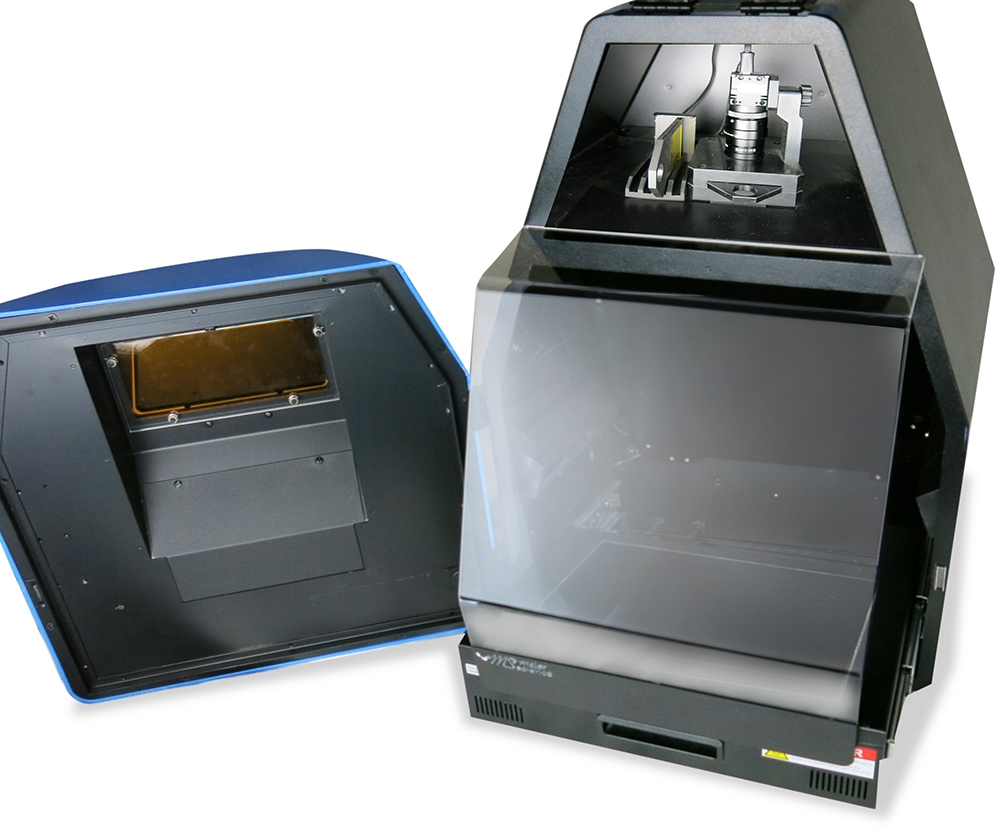

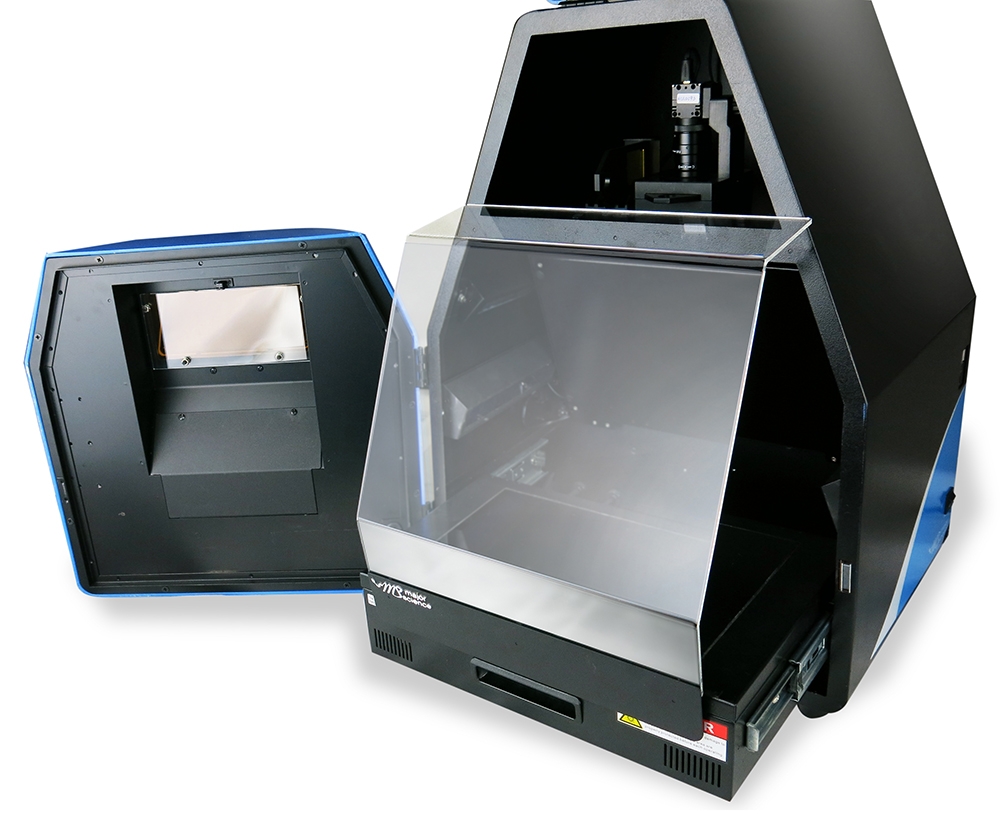

The SmartView Pro 2100 is simply the upgraded version of UVCI-1100. The SmartView Pro 2100 offers all same great features except the 2.0 megapixel CCD camera to provide image with sharper sensitivity, and less exposure time. All the accessories are shared between 1000 and 2000 so it’s easy and simple to use. All great features such as pre-focused lens, safety UV door and 1D analysis software are all included as standard. Enjoy the most compact CCD imaging system for all of your laboratory work.

	Easy installed by magnetic design		UV Protection Shield		Easily gel cutting design with UV
	Up to 4 filters		easily placed by magnetic near camera		Viewing window

• High resolution CCD camera (UVCI-2100)
• High resolution 5.0 megapixel monochrome camera (UVCI-1100)
• PC integration with real time image
• Capture/Analysis software included
• Pull out UV Transilluminator for easy gel cutting
• Easy installation, ready to use right out of the box
• Pre-focused lens allow one touch image capture
• Variety of optional accessories available
• UV safety cut-off switch when door is open
• CE and FCC certification

Model	SmartView Pro 2100
Cat. No.	UVCI-2100
UV Light	Built-in drawer type UV Transilluminator 312(302)nm
Camera	1/1.8" interline UXGA monochrome progressive , 2.0MP CCD
Pixels Size	4.4μmx4.4μm
Lens (Camera)	6mm, F1.2
Camera Video Output	12-bit
Filter (Camera) *Ordered separately	Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage	PC
Software Support	Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet	Pull out, sliding transilluminator
Field Of View (WxL)	Approx. 10.2"x8.3" (260x210mm)
Dimension (WxLxH)	Approx. 16.1"x15.9"x22.4" (410x405x570mm)
Weight	Approx. 54lbs. (24.5kg)
Display	LED indicator light
Viewing Window	Built-in UV viewing window
Window Filter	Built-in Viewing Window Amber Filter 560nm
Light	White light (standard)
Optional Accessory	White Light Plate (power built-in)
Optional Accessory	Blue light (power built-in) 470nm
Safety	CE, FCC
PC Connection	USB port
1 D Analysis Software	Cat. No. MBE-IMG-SW included
Saved Image	BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage	100-240V~, 50/60Hz, 2A

Cat. No.	Product Description
UVCI-1000-WL	White Light Plate for SmartView Pro Imager System, 1100 & 2100 series
UVCI-1000-BL	Blue Light Module for SmartView Pro Imager System, 1100 & 2100 series
UVCI-1000-EB	SmartView EtBr Filter, 610nm (for UV)
UVCI-1000-SG	SmartView SYBR Green Filter, 520nm (for UV)
UVCI-1000-F1	Viewing window Amber filter, 560nm for SmartView Pro Imager System, 1100 & 2100 series

MBE-IMG-F3	SmartView Amber Filter 560nm
MBE-IMG-F4	SmartView Amber Filter 580nm

UVCI-1003	SmartView Pro UV Protection Shield, for 1100 & 2100 series

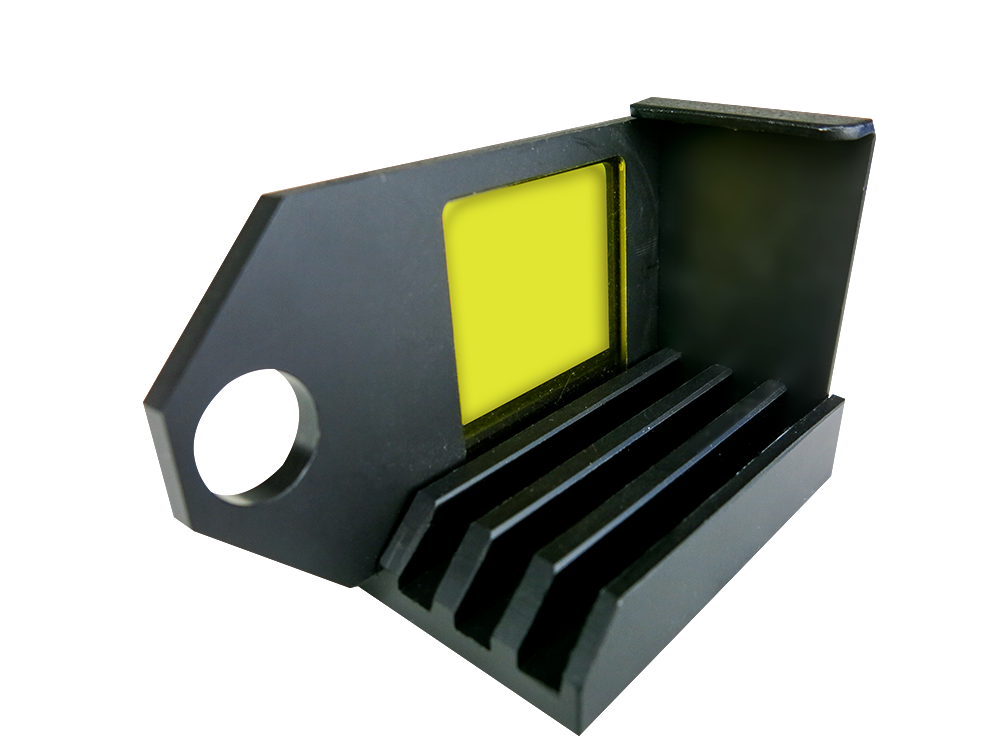

UVCI-1004	SmartView Pro Lens Filter Stand, can hold up to 4 lens filters, for 1100 & 2100 series
MBE-G-Y1	Amber Filter Viewing Glasses, 560 nm (optional)
MBE-IMG-SW	MS 1D Analysis Software
DI-TOTALLAB	Totallab 1D Gel Analysis Software
