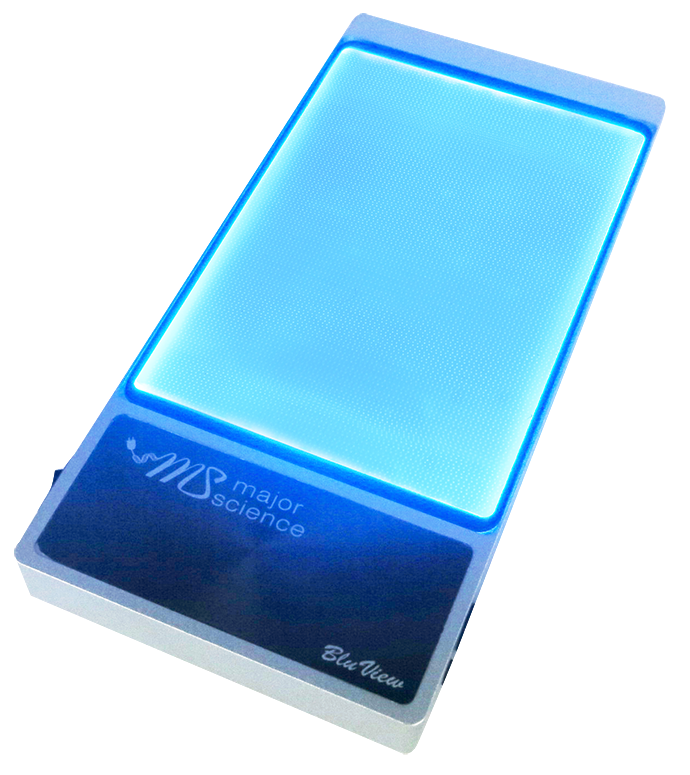

BluView Transilluminator 470nm., 220V.,50Hz.
Major Science BluView Transilluminator uses the harmless blue LED lights to replace the aggressive UV lights, and allows you to directly view the experiment result without wearing any UV protection equipment. With its compact size and light weight, the transilluminator occupies little of your lab bench and is easy to move from lab to lab.

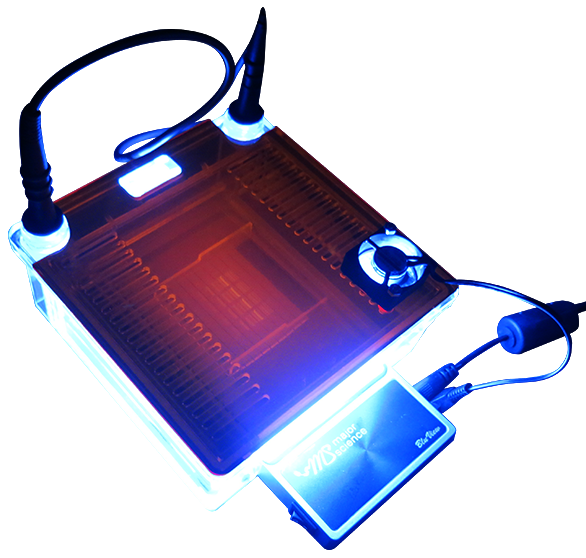

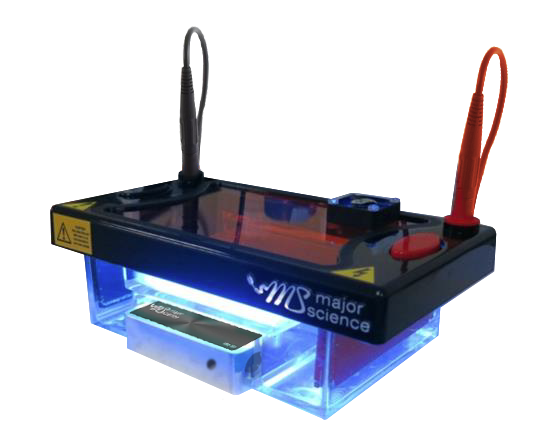

Package with our Mini Horizontal Gel Electrophoresis System is available to perform real time observation and early mistake detection.
● Portable size and light weight
● Safe 470nm blue light wavelength
● Slim design fits in most of electrophoresis tanks
● Real time observation
● Efficient and early mistake detection
● Ultra high light uniformity
|
Cat. No. |
MBE-300 |
|
Dimension (WxLxH) |
Approx. 3.4"x6.7"x1" (86x170x25mm) |
|
Viewing Area (WxL) |
Approx. 4.4"x2.9" (112x74.6mm) |
|
Blue Light Source |
20W |
|
Illuminator Base Design |
Flat Bed |
|
Blue Light Wavelength |
470nm |
|
Automatic Shutdown |
Approx. 6 min |
|
Material |
Aluminum Alloy |
|
Power |
DC 12V, 2A |
|
Weight |
Approx. 0.75lb (338g) |
|
Cat. No. |
Product Description |
|
MJ-105A |
Transparent Mini Horizontal Electrophoresis System |
|
MBE-102 |
LLid with 580nm amber filter and evaporation fan for ME10-7-10 |
|
MBE-103 |
Lid with 580nm amber filter and evaporation fan for ME7-7-10 |
|
MBE7-TANK |
ME7-7-10 Electrophoresis tank only, without Lid and Red / Black Cable |
|
MBE10-TANK |
ME10-7-10 Electrophoresis tank only, without Lid and Red / Black Cable |
|
MBE-150-CABLE |
Threaded Black and Red Electrophoresis Cable |
|
MJ-LID-AM580 |
580nm amber filter lid with fan, suitable for MJ-105A |
|
MBE-LID-AM580 |
An inclined 580nm amber filter, suitable for MBE-200A and MBE-300 |
|
MBE-HOOD |
Synthetic paper hood |
Catalogue_W11-Blue Click Here
Brochure-008-BLUE Click Here
